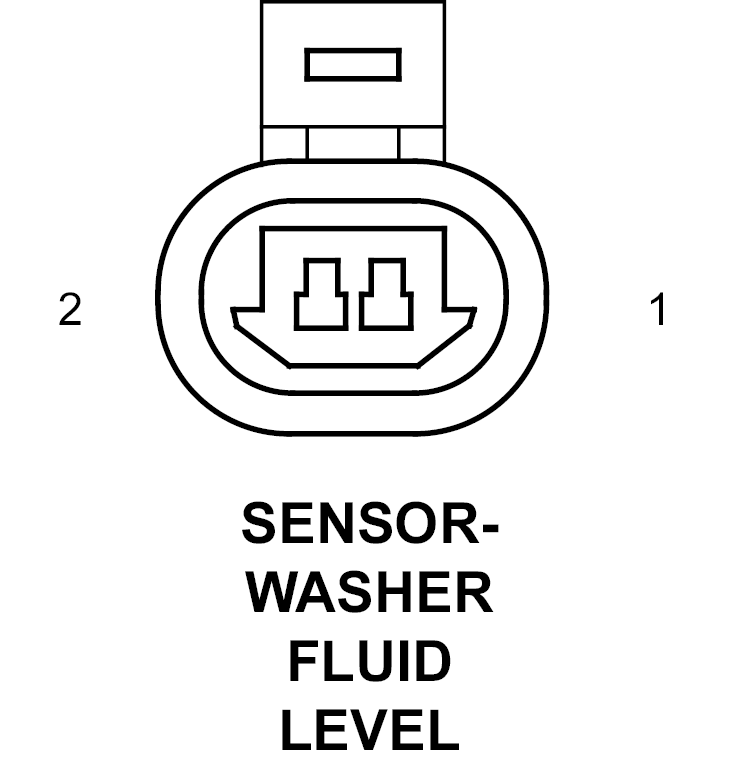

Washer Fluid Level Sensor Connector End View
Washer Fluid Level Sensor Connector End View
SENSOR-WASHER FLUID LEVEL - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
W1 20BR/TN
WASHER FLUID LEVEL SENSOR SIGNAL
2
Z384 20BK
GROUND
