Map Sensor (Gas) Connector End View
Map Sensor (Gas) Connector End View

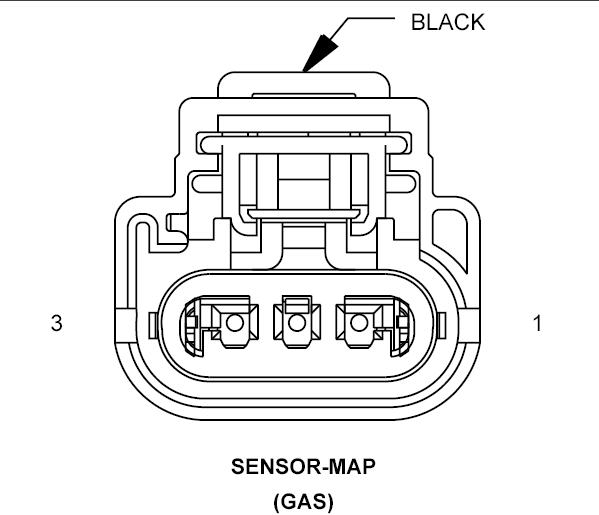

SENSOR-MAP - BLACK 3 WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K1 20VT/LB
MAP SIGNAL
2
K900 20DB/DG
SENSOR GROUND
3
K857 20BR/LG
5 VOLT SUPPLY
