Exhaust Temperature Sensor-Installation

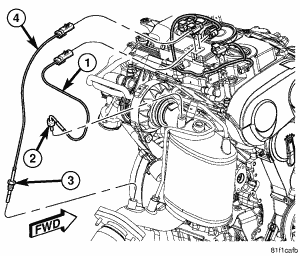

Fig 1: EXHAUST TEMPERATURE SENSOR - DPF

Courtesy of CHRYSLER LLC

1 - Item_1

2 - Item _2

1. Position DPF downstream temperature sensor into DPF. Tighten to 25 N.m (221 in. lbs.).
2. Connect downstream temperature sensor electrical connector.
3. Position DPF upstream temperature sensor into DPF. Tighten to 25 N.m (221 in. lbs.).
4. Connect upstream temperature sensor electrical connector.
5. Install engine cover.
