DTCS P0032 To P0135
›
P0111-Intake Air Temperature Sensor Performance
›
Circuit Schematic
Circuit Schematic

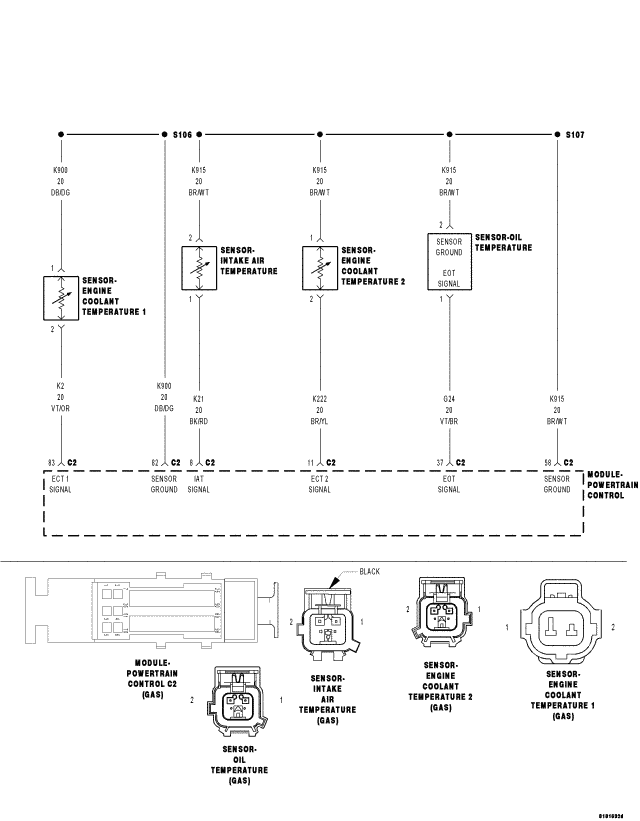

Fig 1: Engine Coolant Temperature, Oil Temperature & Intake Air Temperature Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
