EGR Valve

Fig 1: Air Inlet Duct

Courtesy of CHRYSLER LLC

Remove air inlet duct (3).
Disconnect negative battery cable.

Fig 2: ENGINE COVER
Courtesy of CHRYSLER LLC
Remove engine cover. Refer to REMOVAL .

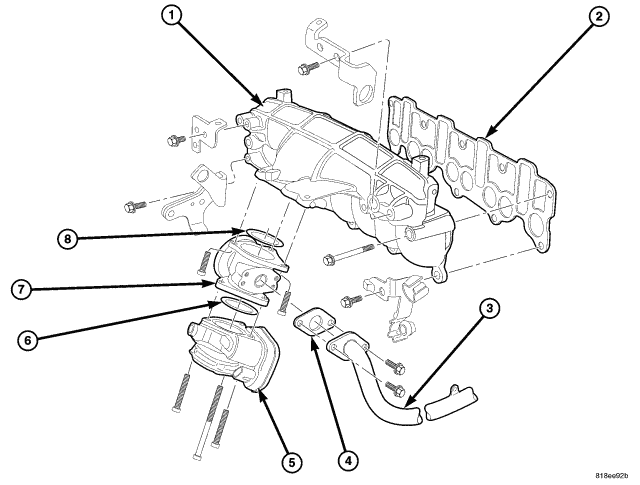

Fig 3: Intake Manifold & Components
Courtesy of CHRYSLER LLC
Disconnect EGR valve vacuum line.
Disconnect EGR pipe (3) at EGR valve.
Remove air inlet tube from intake manifold flap motor (5).
Remove intake manifold flap motor (5).
Remove EGR valve retaining bolts and remove EGR valve (7).
