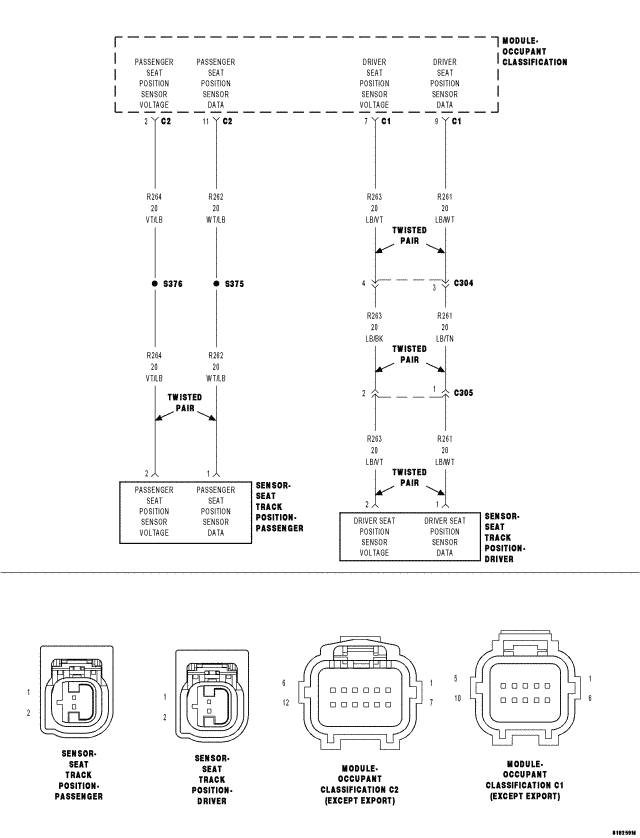

Home › Jeep › 2007 › Compass Limited, AWD, Standard › Repair and Diagnosis › Restraints › Restraints Control Systems › DTCS B1B8E To B1C2B › B1B91-Driver Seat Track Position Sensor Configuration Mismatch › Circuit Schematic
