Frame & Bumpers: Bumpers: Fascia-Rear: Installation: Fascia-Rear

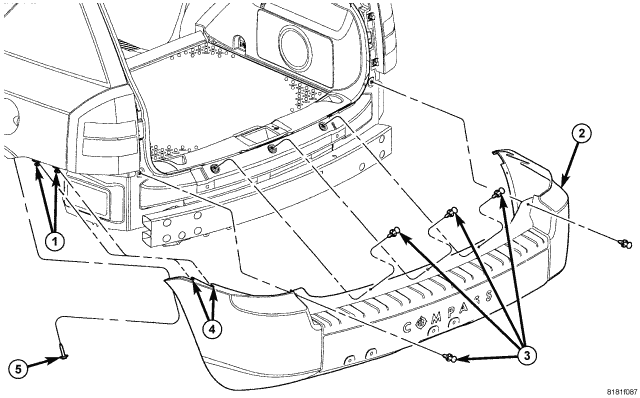

Fig 1: REAR FASCIA COMPONENTS

Courtesy of CHRYSLER LLC

1. Install the fascia and line up the slots (4) with the screws (1 and 5) and seat fully.
2. Tighten the screws (1 and 5).
3. Install the push pin fasteners (3).
   Fig 2: REAR FASCIA FASTENERS

   Courtesy of CHRYSLER LLC
4. Install the lower fasteners (3).
   Fig 3: REAR FASCIA SPLASH SHIELD FASTENERS

   Courtesy of CHRYSLER LLC
5. Install the fascia to splash shield screws (1).
