CROSSMEMBER-Front Fore/Aft

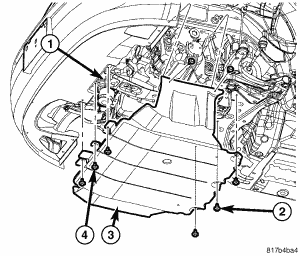

Fig 1: BELLY PAN

Courtesy of CHRYSLER LLC

Raise and support the vehicle. Refer to STANDARD PROCEDURE .
Remove the four wheel well screws.
If equipped, remove the three front screws (4), the three rear screws (2) and one push pin fastener from the center of the belly pan.

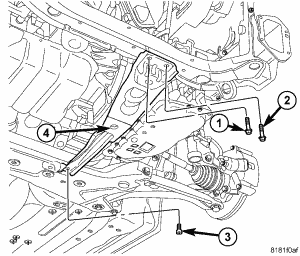

Fig 2: FORE/AFT CROSSMEMBER 1
Courtesy of CHRYSLER LLC
Remove the crossmember bolts (1, 2 and 3).

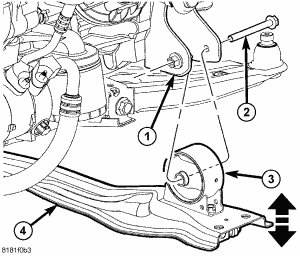

Fig 3: FORE/AFT CROSSMEMBER 2
Courtesy of CHRYSLER LLC
Remove the engine roll mount (3) through bolt (2) and remove the fore/aft crossmember (4).
