Engine Mount - Left

WARNING: This page is about a different variant/trim than selected.

Fig 1: Left Mount

Courtesy of CHRYSLER LLC

Position mount (2) in place.
Install left mount to frame rail bolts (1) and torque to 75 N.m (55 ft. lbs.).
Install mount through bolt (3) and torque to 100 N.m (74 ft.lbs.).
Remove jack.

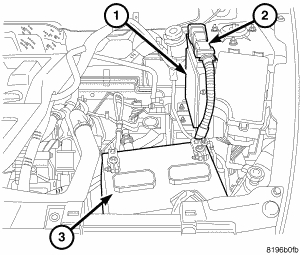

Fig 2: Battery, Negative Battery Cable & PCM
Courtesy of CHRYSLER LLC
Install PCM mounting bracket.
Install PCM (1).
Connect negative cable to battery (3).

Fig 3: Air Cleaner Housing Assembly
Courtesy of CHRYSLER LLC
Install air cleaner housing (1) and air cleaner inlet (2).
