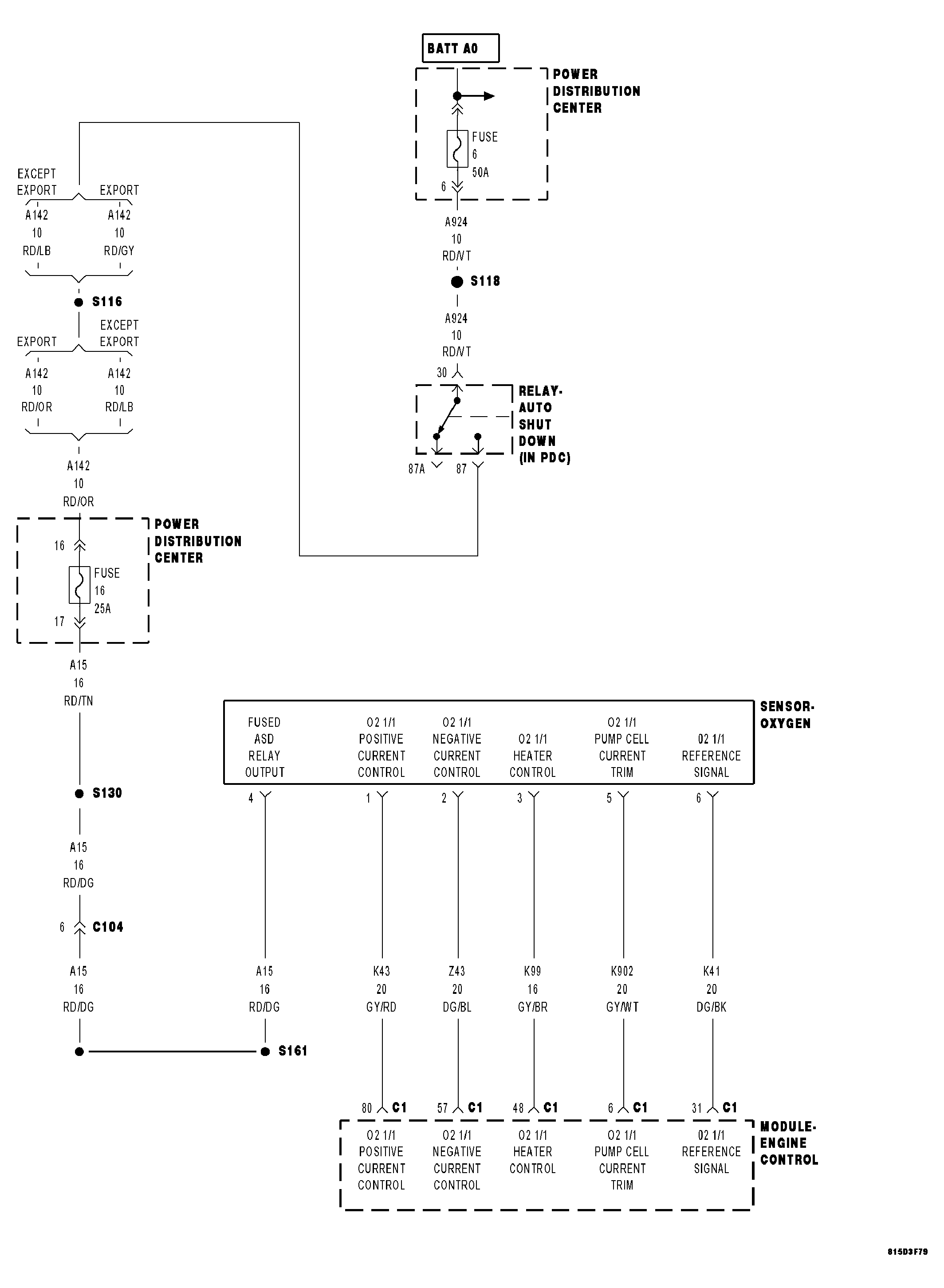

Home › Jeep › 2007 › Grand Cherokee Laredo, 3.0 M › Repair and Diagnosis › Engine Performance › System › Diesel - DTCS P2010 To P2239 › P2237-O2 Sensor 1/1 Pump Cell Current Circuit Open › Circuit Schematic
