Stabilizer Bar: Installation

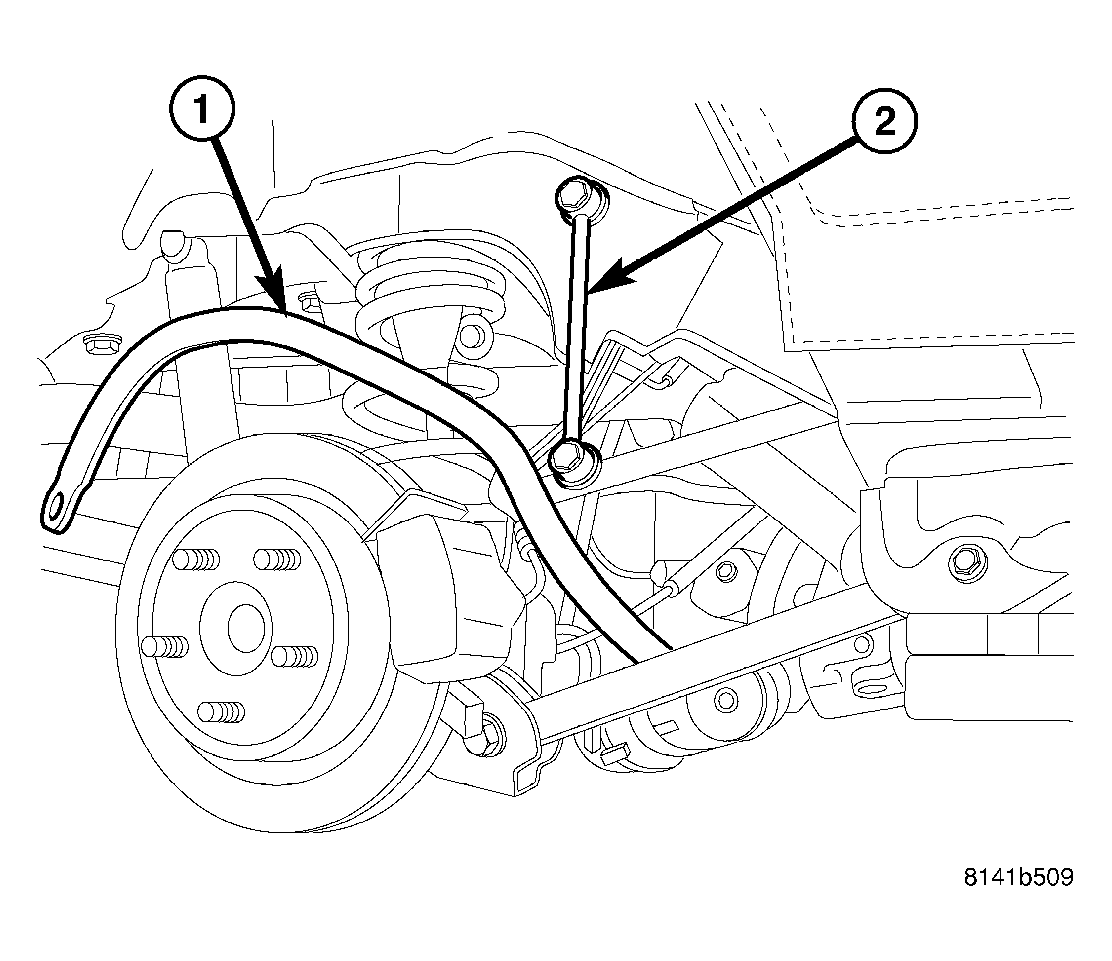

Fig 1: Stabilizer Bar

Courtesy of CHRYSLER LLC

1 - STABILIZER BAR

2 - STABILIZER LINK

Twist and rotate to position the stabilizer bar (1) on the axle from the right rear side of the vehicle.

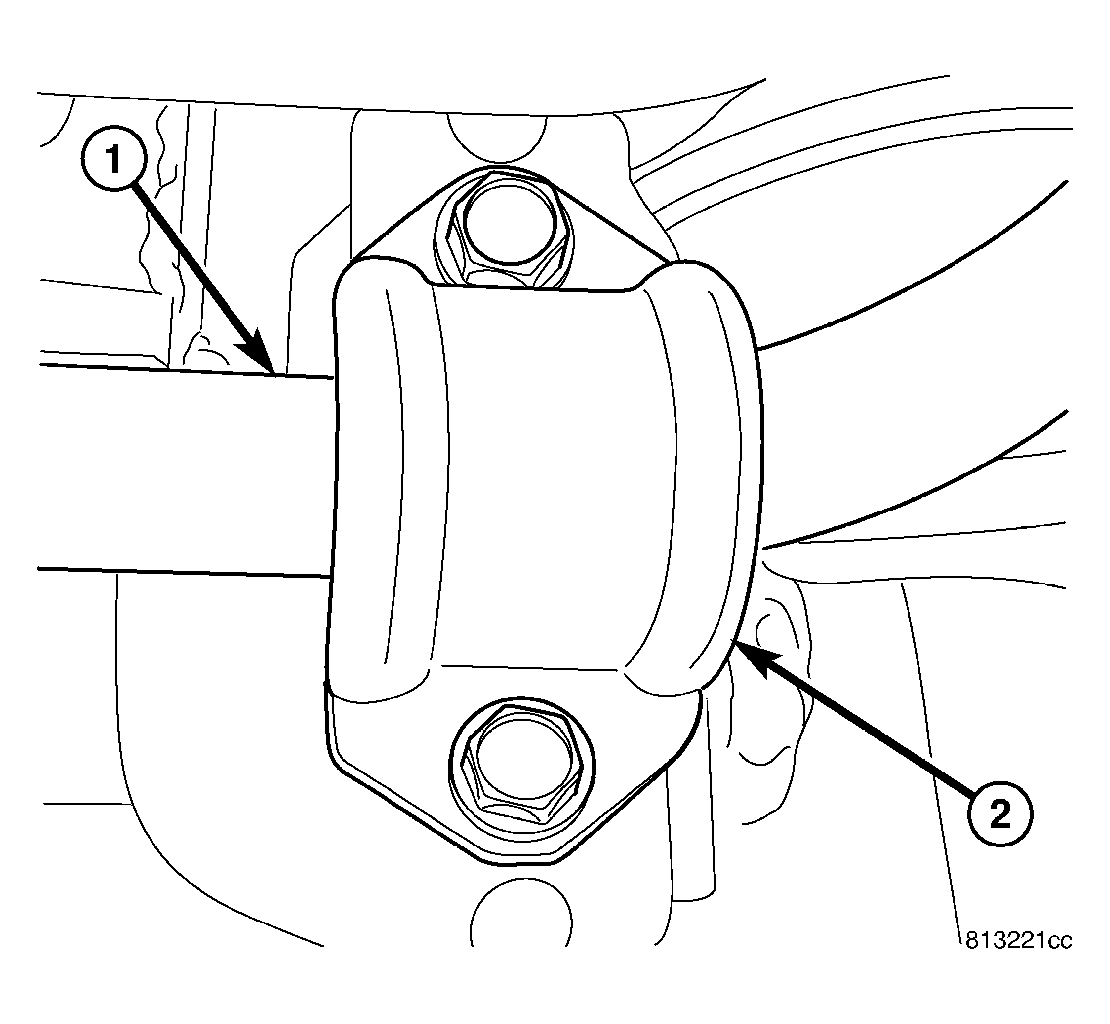

Fig 2: Stabilizer Bar Clamp
Courtesy of CHRYSLER LLC
Install the retainers (2) and bolts. Ensure the bar is centered with equal spacing on both sides. Tighten the bolts to 42 N.m (31 ft. lbs.).
Install the links to the stabilizer bar.
Tighten the nuts at the stabilizer bar to 122 N.m (90 ft. lbs.).
Install the tire and wheel assemblies.
Remove support and lower the vehicle.
