Track Bar: Installation

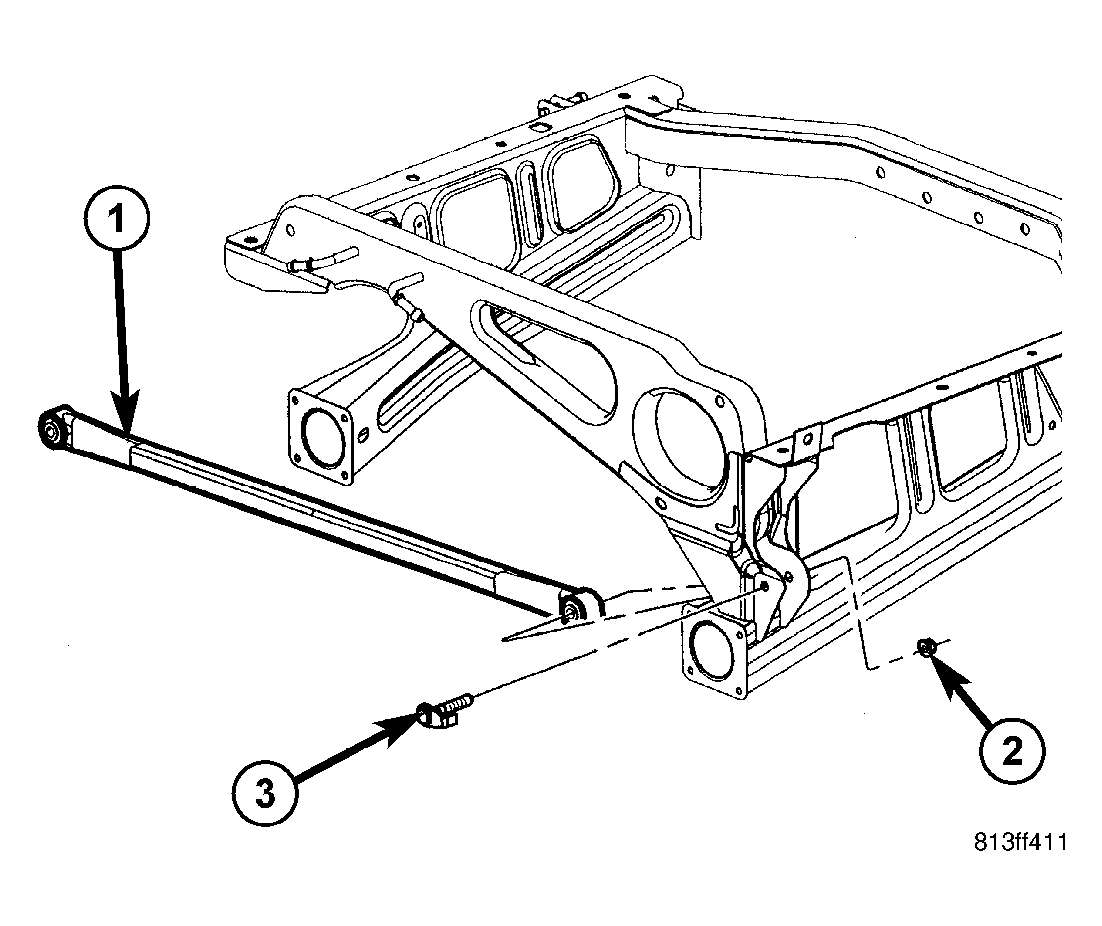

Fig 1: Track Bar

Courtesy of CHRYSLER LLC

1 - TRACK BAR

2 - NUT

3 - BOLT

Install the track bar (1) to the vehicle.
Pry in between the coil springs to install track bar bolt (3).
Install the track bar bolt (3) and nut (2) in the frame bracket.

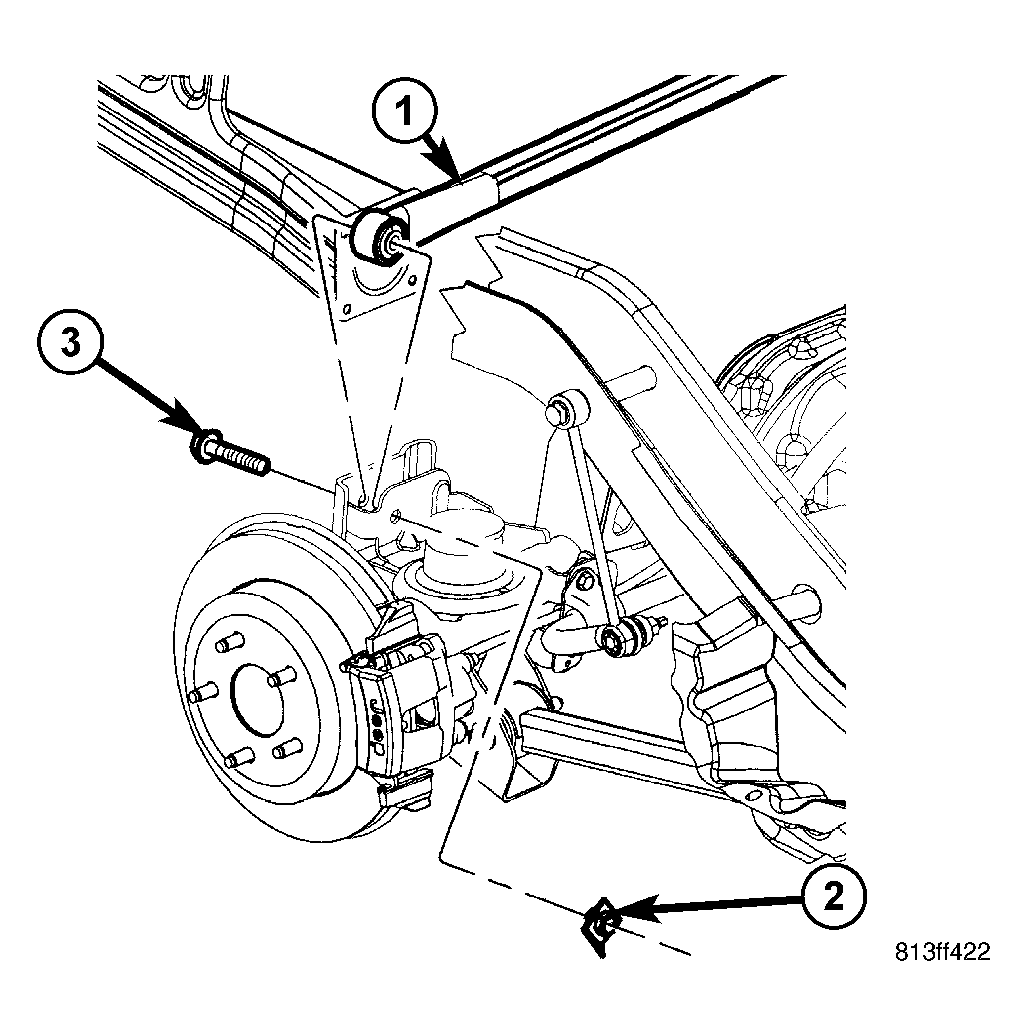

Fig 2: Track Bar Mount
Courtesy of CHRYSLER LLC

1 - TRACK BAR

2 - NUT

3 - BOLT
Install the track bar (1) into the axle bracket.
Install the track bar bolt (3) and nut (2) in the axle bracket.
Install the left lower shock bolt to the axle Tighten to 115 N.m (85 ft. lbs.).
Remove the supports and lower the vehicle.
Tighten the upper mounting bolt/nut to 190 N.m (140 ft. lbs.). Tighten the lower mounting bolt/nut to 190 N.m (140 ft. lbs.). with full vehicle weight.
