Module/Frame Assembly

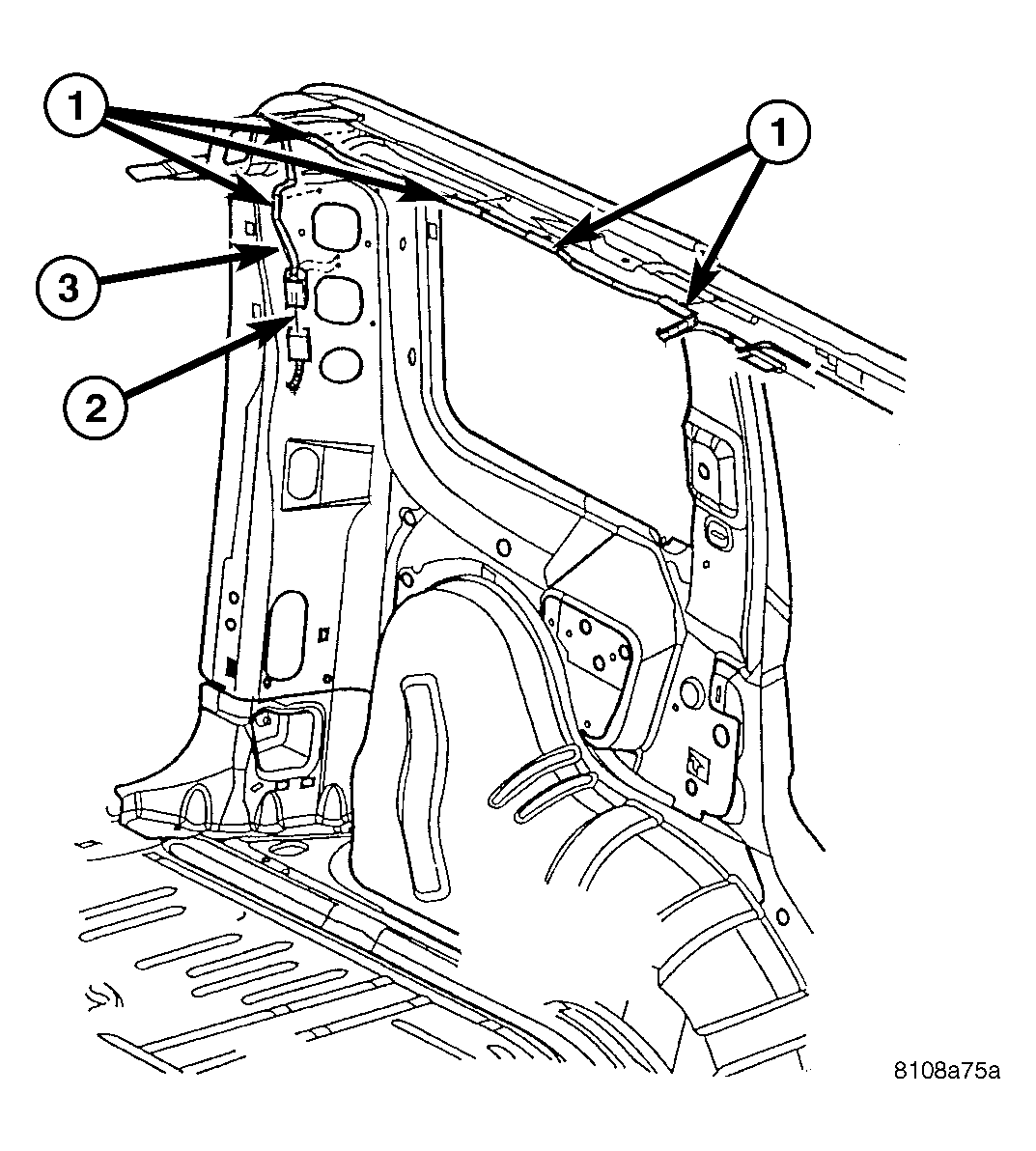

Fig 1: Locating Wire Harness

Courtesy of CHRYSLER LLC

1 - CLIPS

2 - ELECTRICAL CONNECTOR

3 - WIRE HARNESS

Move glass panel to fully closed position.
Disconnect and isolate negative battery cable.
Remove sunroof opening trim lace. See REMOVAL .
Remove control switch. See REMOVAL .
Remove headliner. See REMOVAL .
Disconnect wire harness push in fasteners (1) and electrical connector (2) from vehicle harness (3).
Disconnect drain tubes from sunroof housing.

Cut foam support pad at rear of module if necessary.

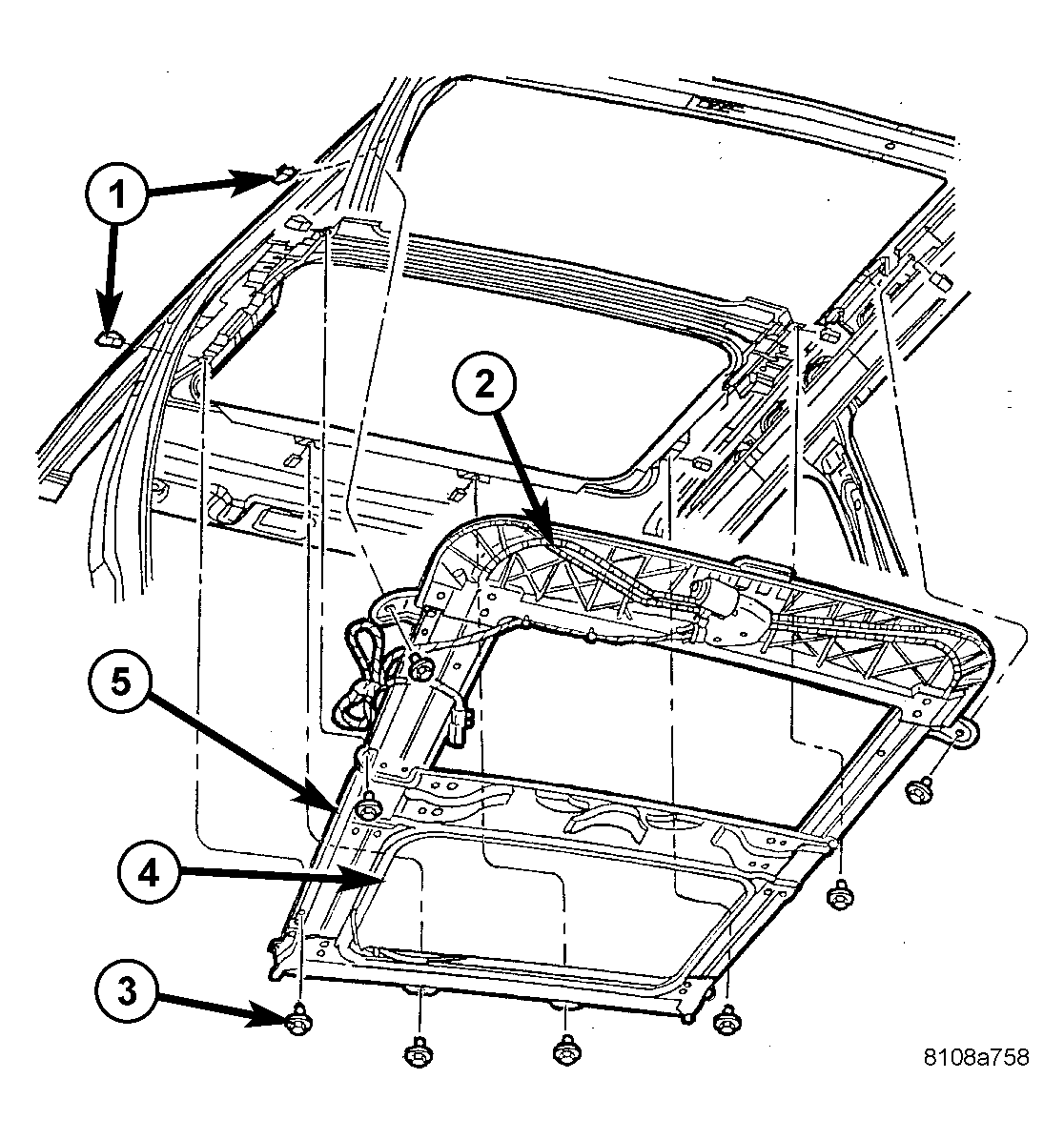

Fig 2: Module Assembly & Components

Courtesy of CHRYSLER LLC

1 - U-NUTS

2 - DRIVE MOTOR

3 - BOLTS

4 - GLASS OPENING

5 - MODULE ASSEMBLY

Remove two module bracket bolts and loosen the remaining fasteners.
With the aid of a helper, remove fasteners attaching sunroof module assembly to roof panel.
Remove the sunshade. See REMOVAL .
Remove the drive motor. See REMOVAL .
Remove the wire harness.
Remove the trough guides. See REMOVAL .
