Servo Cable

Install end of cable to speed control servo. Refer to SERVO-SPEED CONTROL for Removal/Installation instructions.

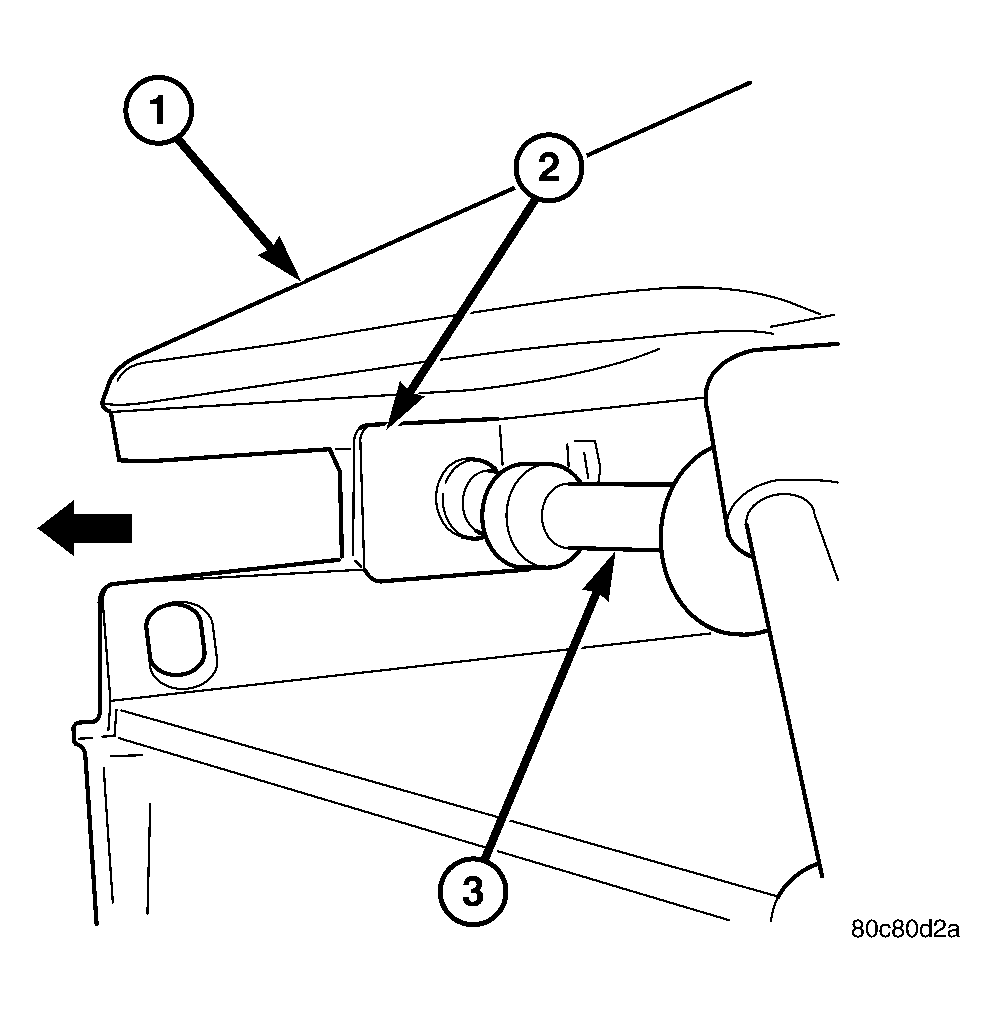

Fig 1: View Of Speed Control Cable At Bracket

Courtesy of CHRYSLER LLC

1 - THROTTLE CABLE BRACKET

2 - PLASTIC CABLE MOUNT

3 - SPEED CONTROL CABLE

Slide speed control cable plastic mount (2) into throttle body bracket.

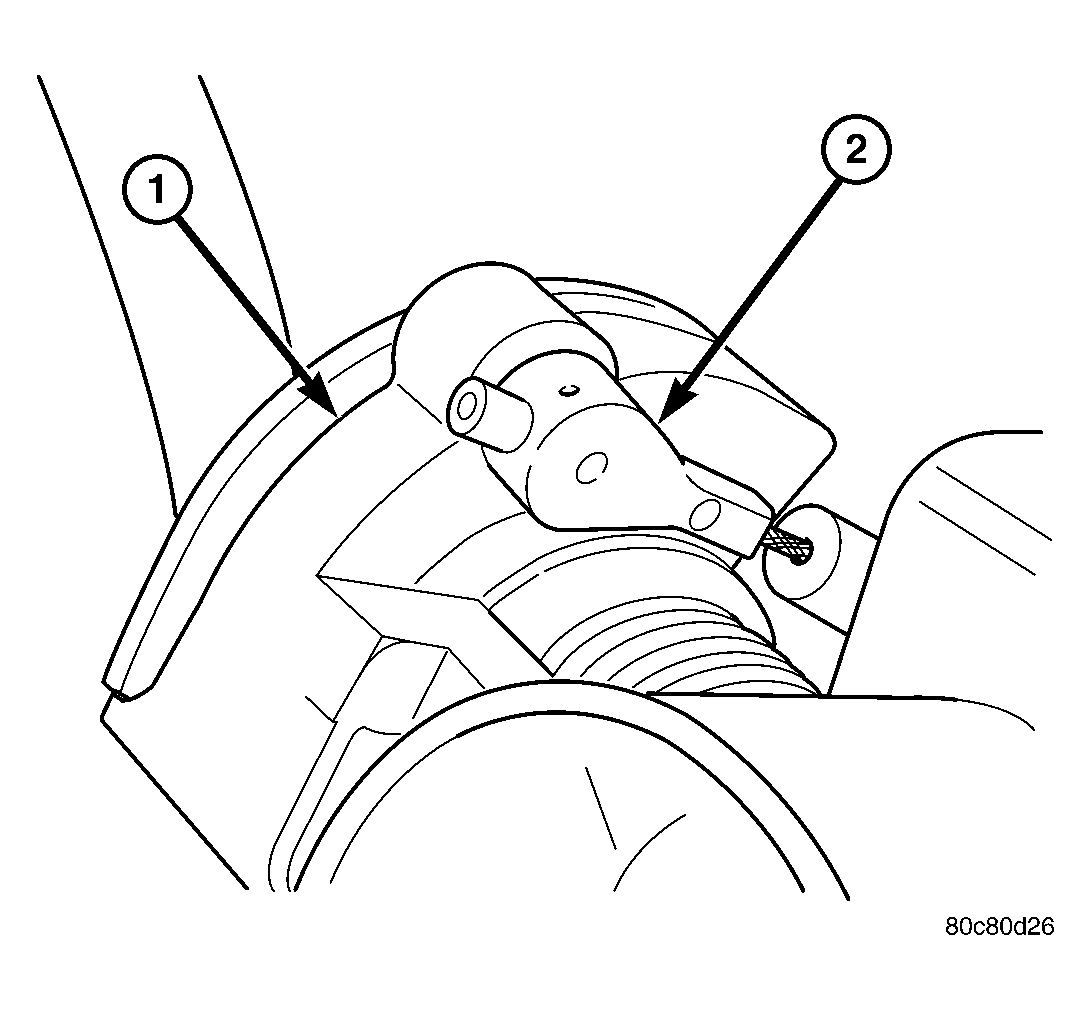

Fig 2: Locating Speed Control Cable At Bellcrank
Courtesy of CHRYSLER LLC

1 - THROTTLE BODY BELLCRANK

2 - SPEED CONTROL CABLE CONNECTOR

Install speed control cable connector (2) onto throttle body bellcrank pin (push rearward to snap into location).

Fig 3: Throttle Cable Release Tab

Courtesy of CHRYSLER LLC

1 - THROTTLE CABLE

2 - RELEASE TAB

3 - PICK OR SCREWDRIVER

4 - PLASTIC CABLE MOUNT

Slide throttle (accelerator) cable plastic mount (4) into throttle body bracket. Continue sliding until cable release tab (2) is aligned to hole in throttle body mounting bracket.

Fig 4: Throttle Cable Pin

Courtesy of CHRYSLER LLC

1 - THROTTLE CABLE PIN

2 - THROTTLE BODY BELLCRANK

3 - PUSH UP HERE

While holding throttle to wide open position, place throttle cable pin (1) into throttle body bellcrank (2).
Install air filter resonator box to throttle body.
Connect negative battery cable at battery.
Before starting engine, operate accelerator pedal to check for any binding.
