Boost Pressure Sensor

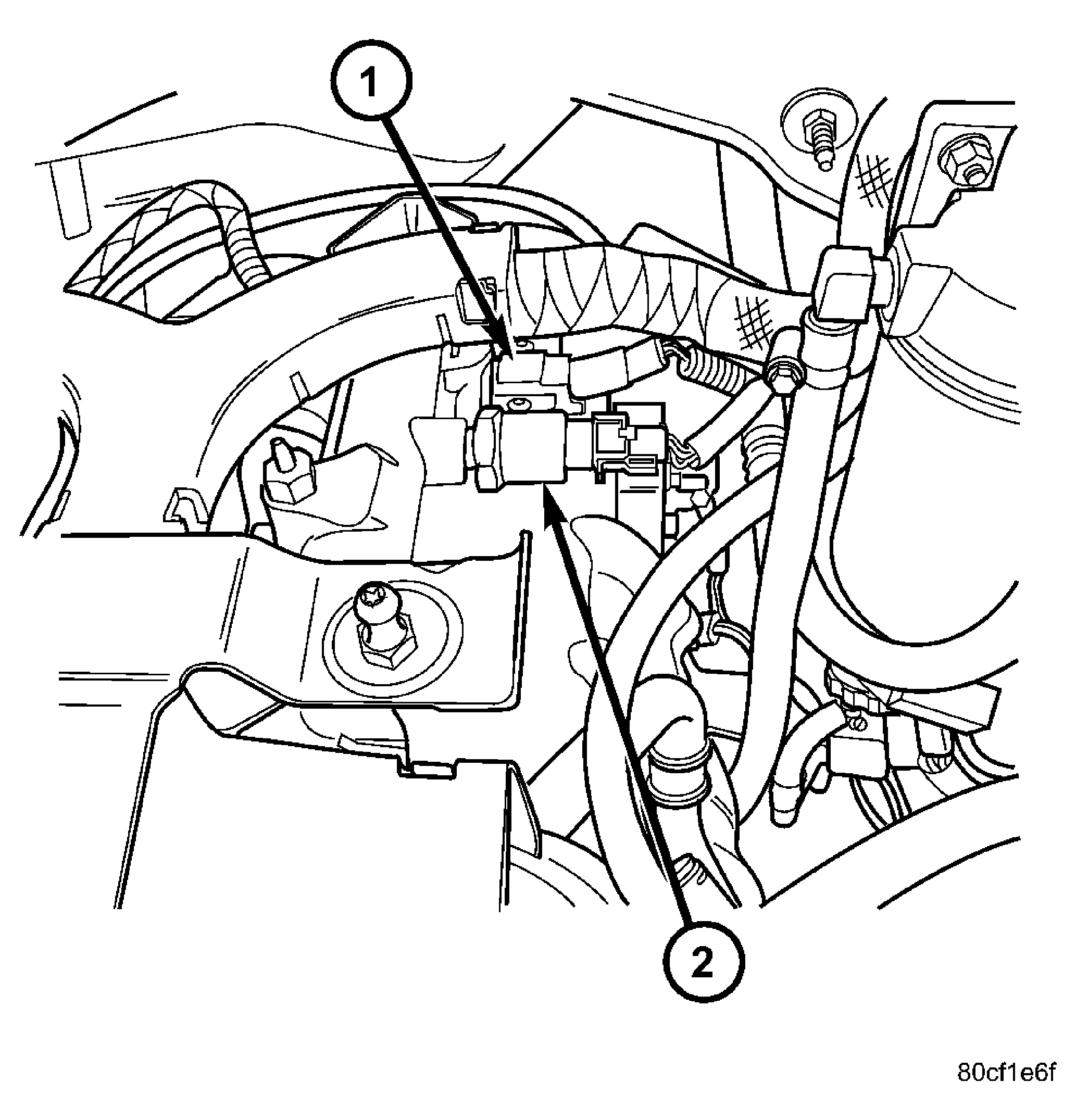

| 1 - BOOST PRESSURE/INTAKE AIR TEMPERATURE SENSOR |
| 2 - FUEL RAIL PRESSURE SENSOR |
- Install sensor (1) and retaining bolts into cylinder head cover/intake manifold. Torque to 5.4 N.m (48 in. lbs.). See Fig 1.
- Connect sensor electrical connector.
- Install engine cover and bracket assembly. Refer to INSTALLATION .
- Connect negative battery cable.
