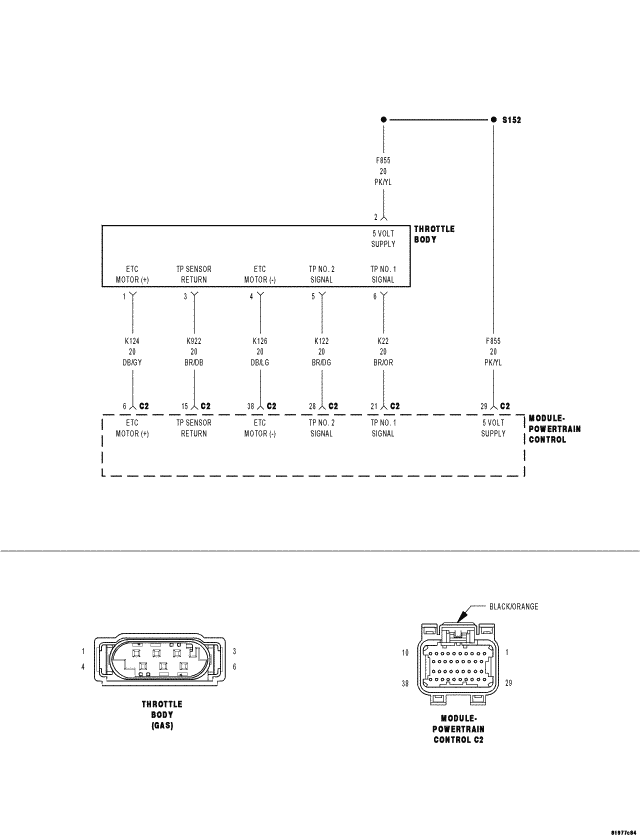

Home › Jeep › 2007 › Liberty Limited, 4WD, Part Time › Repair and Diagnosis › Engine Performance › System › DTCS P0112 To P0155 - Gas › P0121-Throttle Position Sensor 1 Performance › Circuit Schematic
