DTCS P2123 To P2610 - Gas
›
P2271-O2 Sensor 1/2 Signal Stuck Rich
›
Circuit Schematic
Circuit Schematic

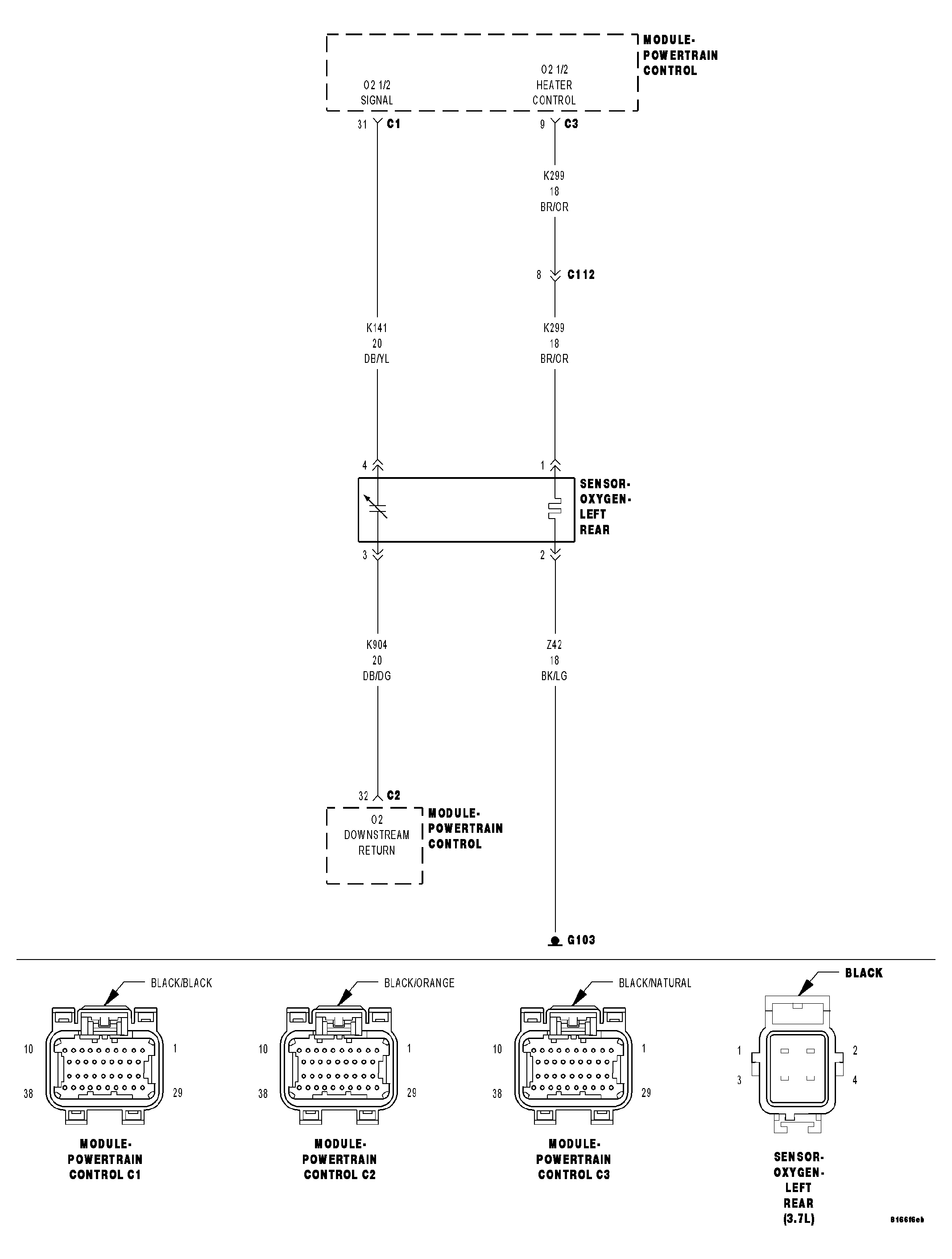

Fig 1: Left Rear O2 Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
