Hoisting Recommendations: Notes

Refer to the Owner's Manual for emergency vehicle lifting procedures.

When properly positioned, a floor jack can be used to lift a Jeep vehicle. See Fig 1. Support the vehicle in the raised position with jack stands at the front and rear ends of the frame rails.

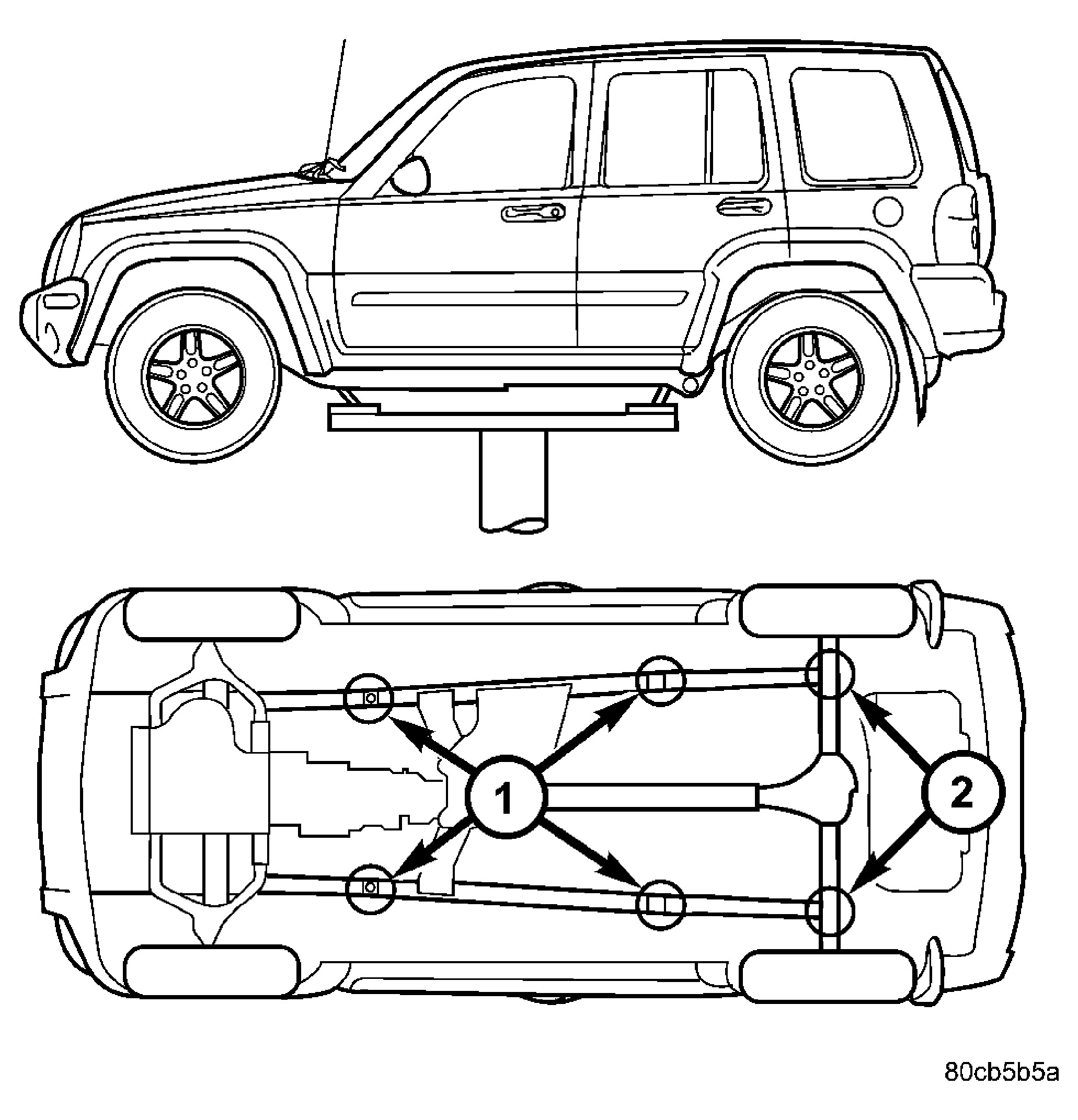

Fig 1: Correct Vehicle Lifting Locations

Courtesy of CHRYSLER LLC

1 -	Frame Contact Lift (Single Post)
-	Chassis Lift (Non-Axle Dual Post)
-	Outboard Lift (Dual Post)
-	Floor Jack
2 -	Floor Jack

CAUTION: Do not attempt to lift a Jeep vehicle with a floor jack positioned under:

A body side sill.
A steering linkage component.
A drive shaft.
The engine or transmission oil pan.
The fuel tank.
A front suspension arm.
Transfer case.

NOTE: Use the correct sub-frame rail or frame rail lifting locations only.
