Remote Keyless Entry Module

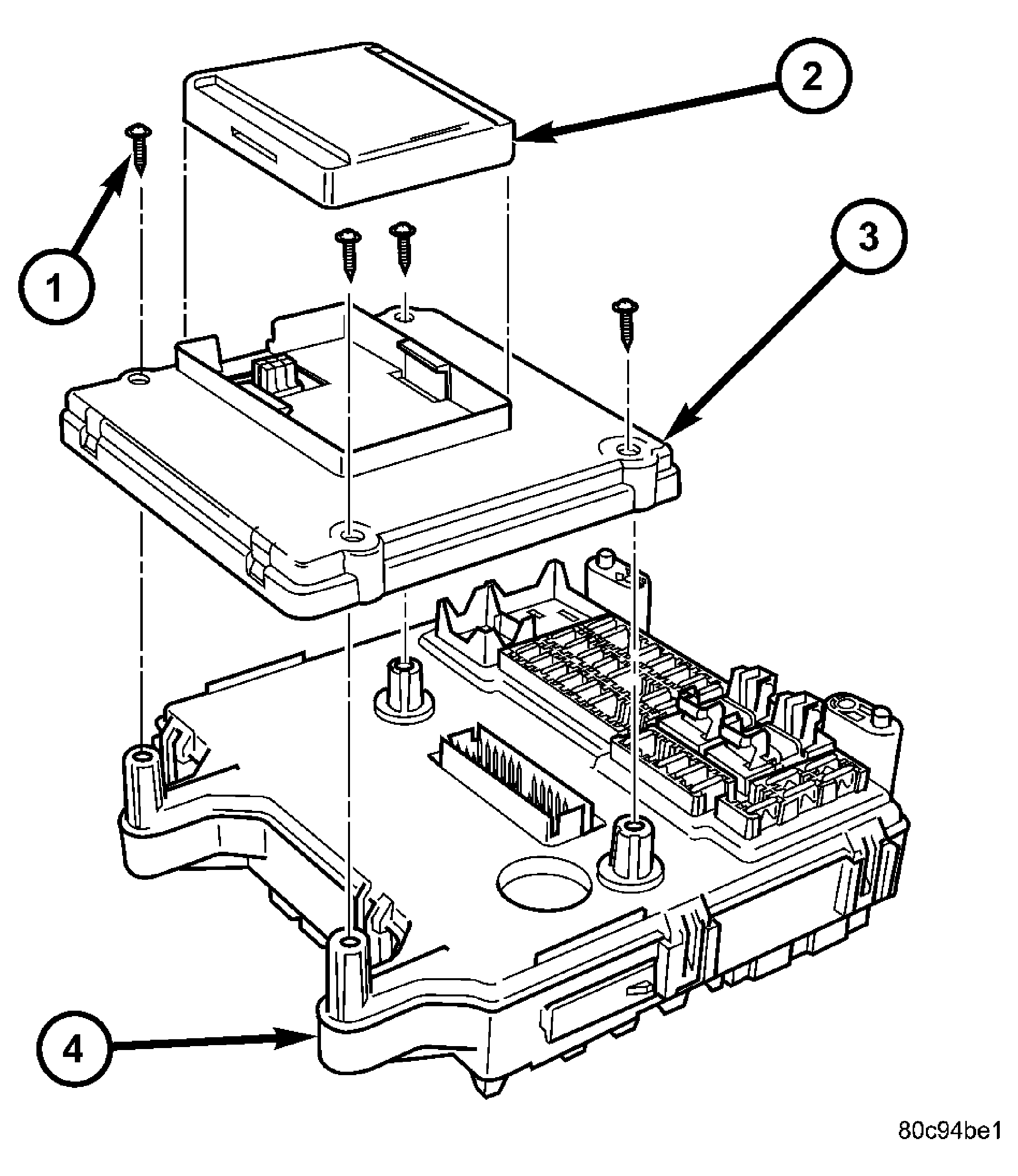

Fig 1: Removing/Installing RKE Module
GC0026551Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the Junction Block (JB) (4). Refer to REMOVAL .
  3. Remove Remote Keyless Entry module (2) from Body Control Module (3).
