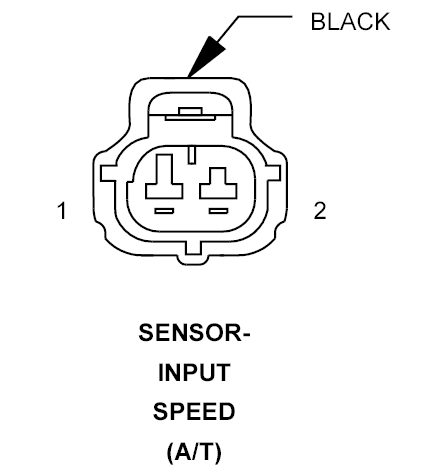

Input Speed Sensor (A/T) Connector End View

SENSOR-INPUT SPEED - BLACK 2-WAY (A/T)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	T52 20DG/WT	INPUT SPEED SENSOR SIGNAL
2	T13 20DG/VT	SPEED SENSOR GROUND
