Junction Bcm Block Connector End View

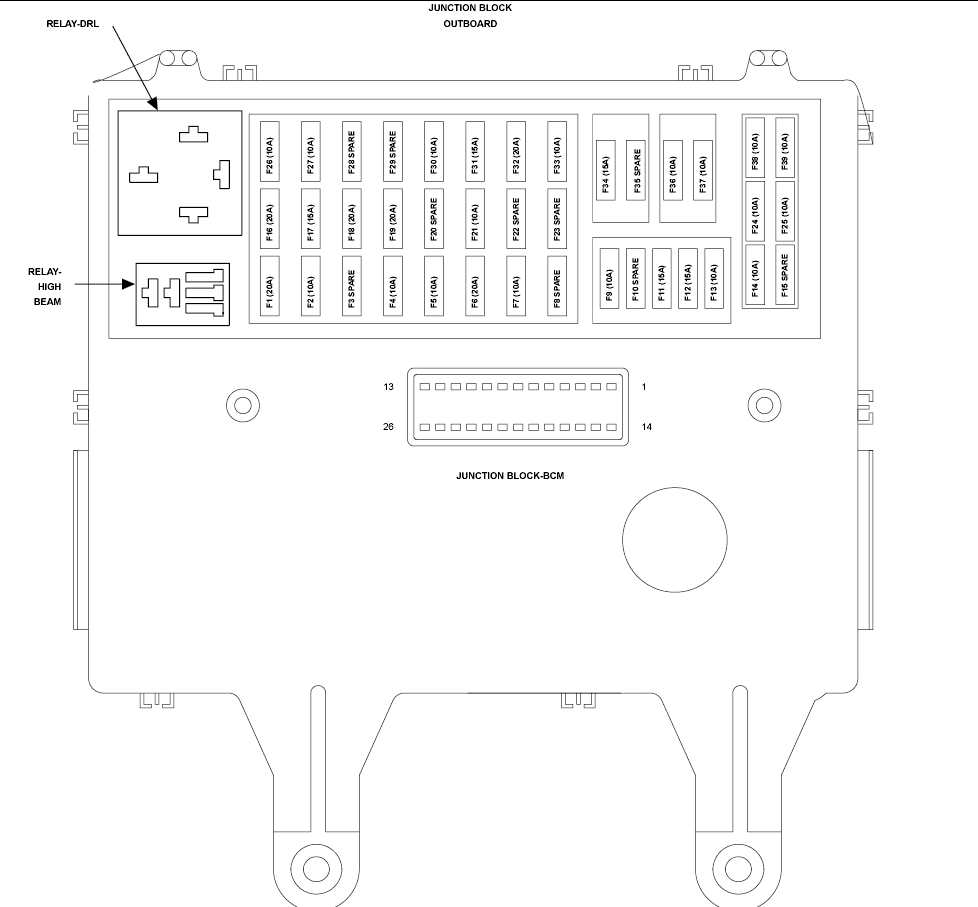

JUNCTION BLOCK-BCM - 26-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	X3	HORN RELAY CONTROL (PREMIUM)
2	P334	DOOR UNLOCK RELAY CONTROL
3	L779	PARK LAMP RELAY CONTROL
4	L239	REAR FOG LAMP RELAY CONTROL (RHD/LHD HIGHLINE)
5	P109	DRIVER DOOR UNLOCK RELAY CONTROL (EXCEPT BASE)
6	C515	REAR WINDOW DEFOGGER RELAY CONTROL
7	P305	ACCESSORY DELAY RELAY CONTROL (EXCEPT BASE)
8	Z944	GROUND
9	A213	FUSED B(+)
10	L309	HIGH BEAM RELAY CONTROL
11	P31	TAILGATE UNLOCK DRIVER
12	P37	DOOR LOCK SWITCH GROUND
13	L45	LOW BEAM RELAY CONTROL
14	F98	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
15	A908	FUSED B(+)
16	F942	FUSED IGNITION SWITCH OUTPUT (RUN-START)
17	L139	FRONT FOG LAMP RELAY CONTROL (EXCEPT BASE)
18	P333	DOOR LOCK RELAY CONTROL
19	W2	FRONT WIPER HIGH/LOW RELAY CONTROL
20	W7	FRONT WIPER PARK SWITCH SENSE
21	W6	FRONT WIPER ON/OFF RELAY CONTROL
22	P30	TAILGATE LOCK DRIVER
23	P36	DOOR LOCK SWITCH MUX
24	Z327	GROUND
25	Z943	GROUND
26	M20	COURTESY LAMP LOAD SHED
