Evaporative Emissions: Valve-PCV-3.7L: Description: Description

Fig 1: PCV Valve - 3.7L

Courtesy of CHRYSLER LLC

A PCV valve (1) using a rubber sealing O-ring (2) is used.

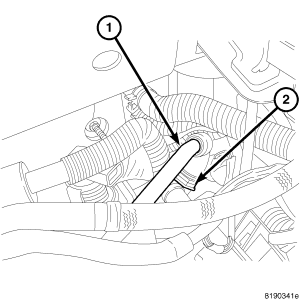

Fig 2: PCV Valve Location - 3.7L

Courtesy of CHRYSLER LLC

The PCV valve is threaded into a metal fitting. The valve (2) is located at the rear of the left cylinder head.
