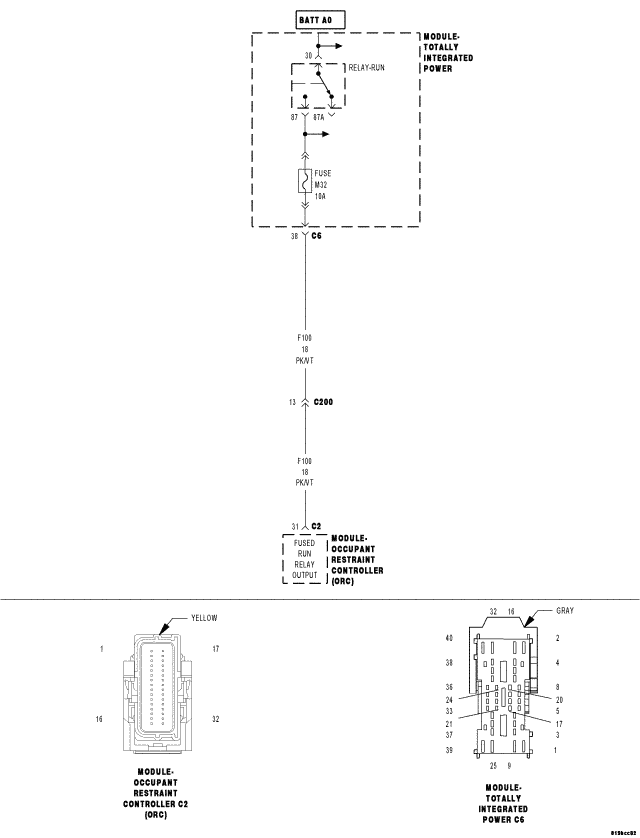

Home › Jeep › 2007 › Wrangler Rubicon, Automatic › Repair and Diagnosis › Restraints › Restraints Control Systems › DTCS B1C28 To B2208 › B212D-Ignition Run Only Input Circuit Open › Circuit Schematic
