Hoses-Cooling System-2.8L Diesel: Installation: Installation

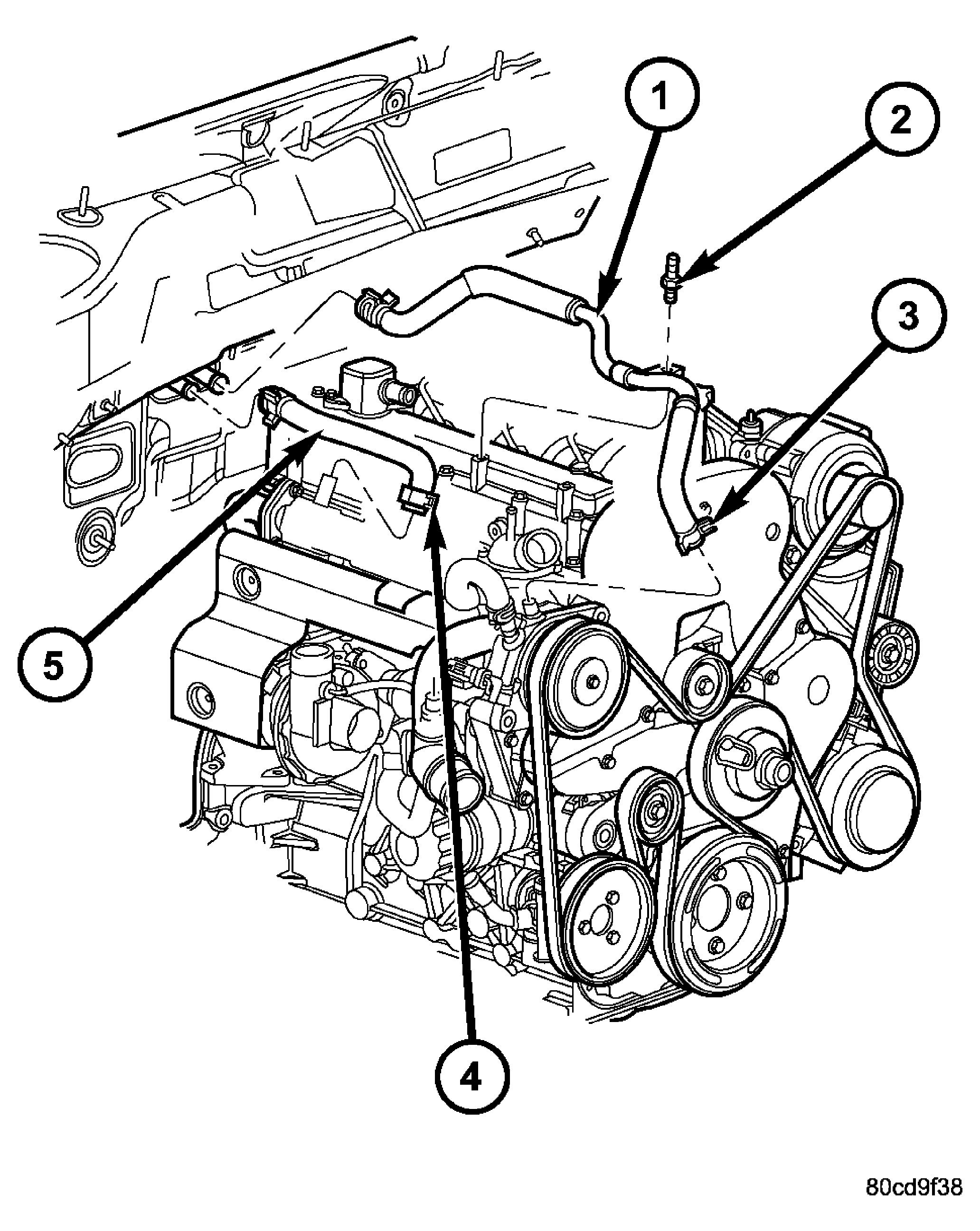

Fig 1: Heater Core Coolant Hoses

Courtesy of CHRYSLER LLC

1 - HEATER CORE TO VISCOUS HEATER HOSE

2 - MOUNTING STUD

3 - HOSE CLAMP

4 - HOSE CLAMP

5 - HEATER CORE TO EGR COOLER HOSE

1. Connect heater core supply hose to heater core and viscous heater. Position hose clamps into proper position.
2. Connect heater core return hose to heater core and EGR cooler. Position hose clamps into proper position.
3. Install engine cover to engine. Refer to INSTALLATION .
4. Refill cooling system. See STANDARD PROCEDURE .
