Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

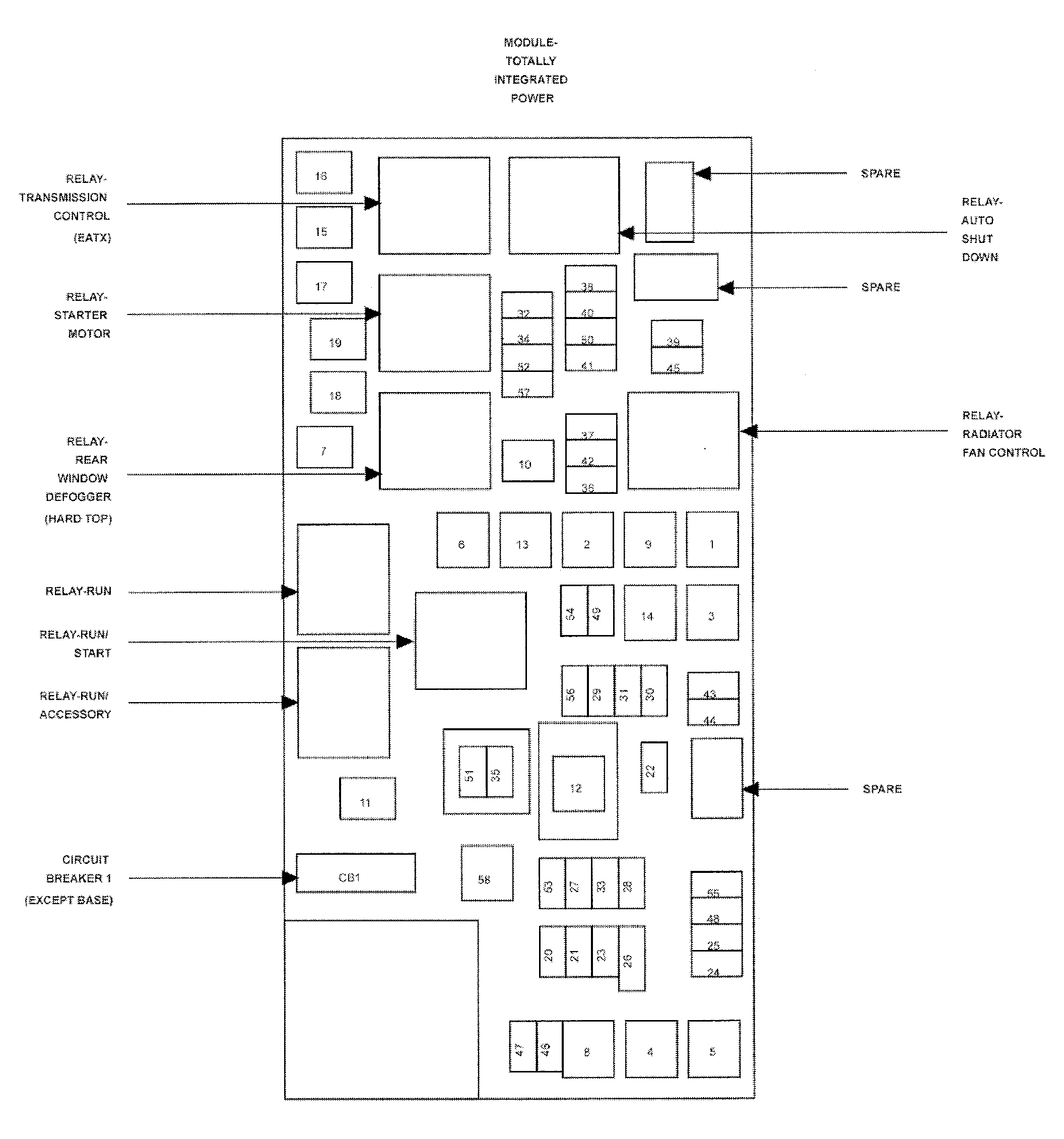

Circuit Breaker 1 In totally integrated power module. See Figure.

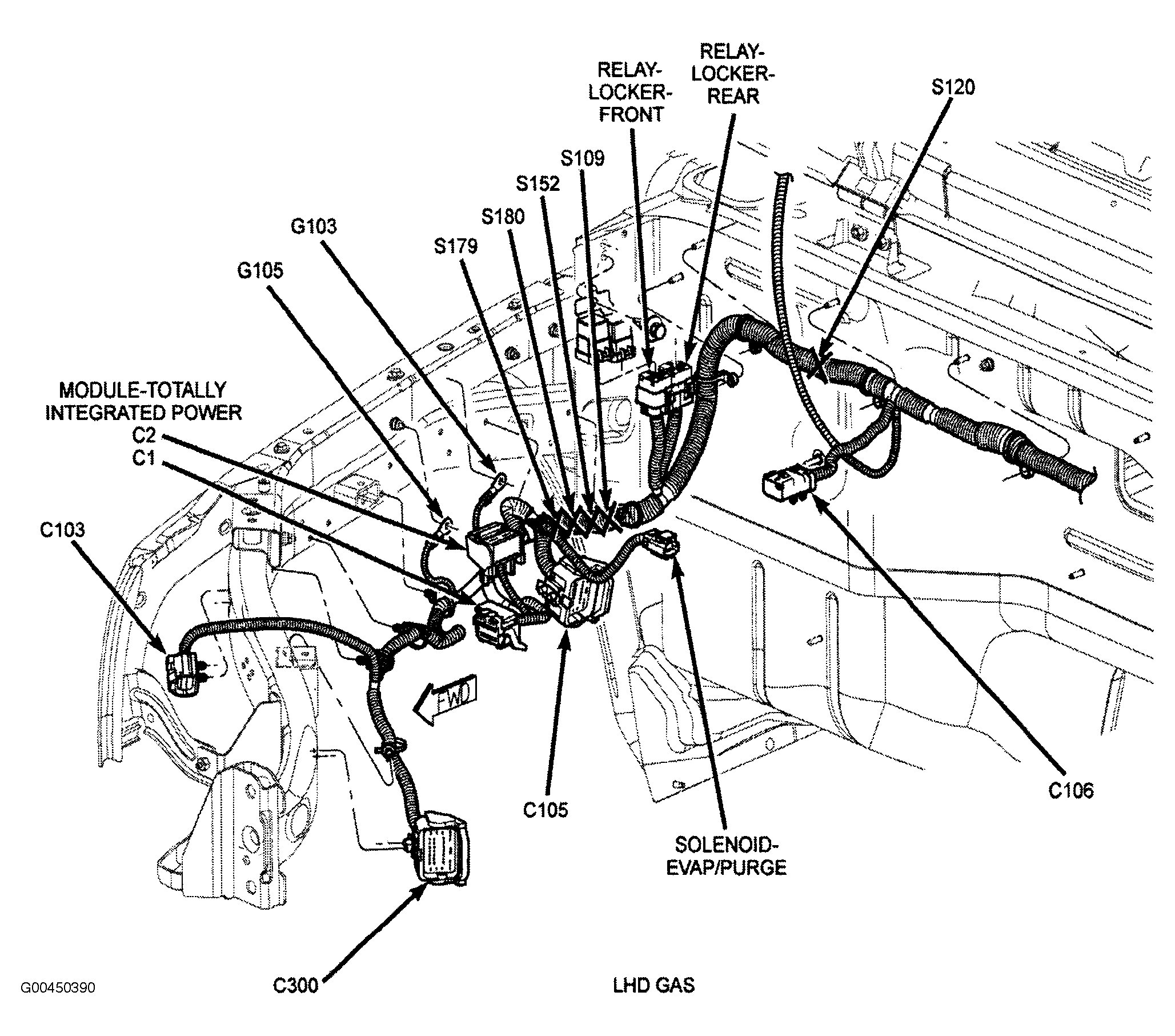

Totally Integrated Power Module Passenger side of engine compartment. See Figure.
