Circuit Schematic

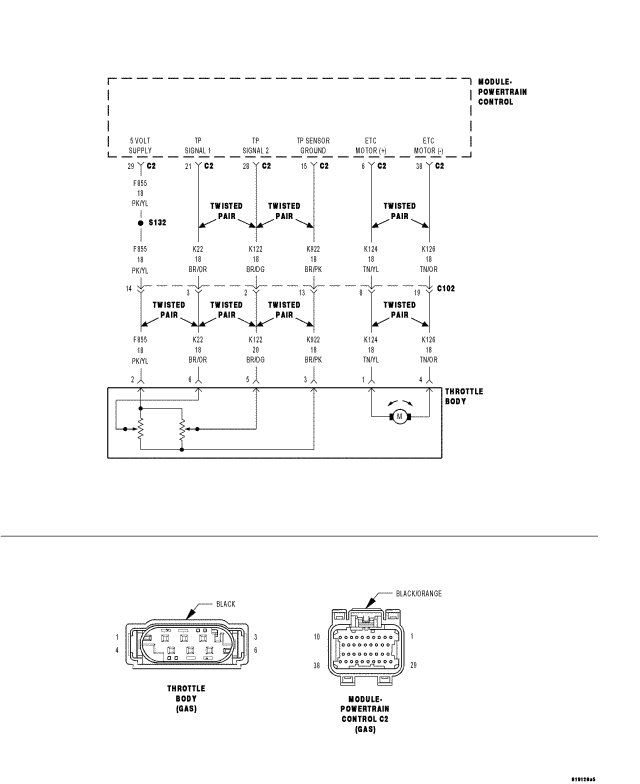

Fig 1: Electronic Throttle Control Motor Circuit Schematic
GC0064179Courtesy of CHRYSLER LLC
