Jeep
›
2007
›
Wrangler X, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
DTCS P0430 To P0571
›
P0571-Brake Switch 1 Performance
›
Circuit Schematic
Circuit Schematic

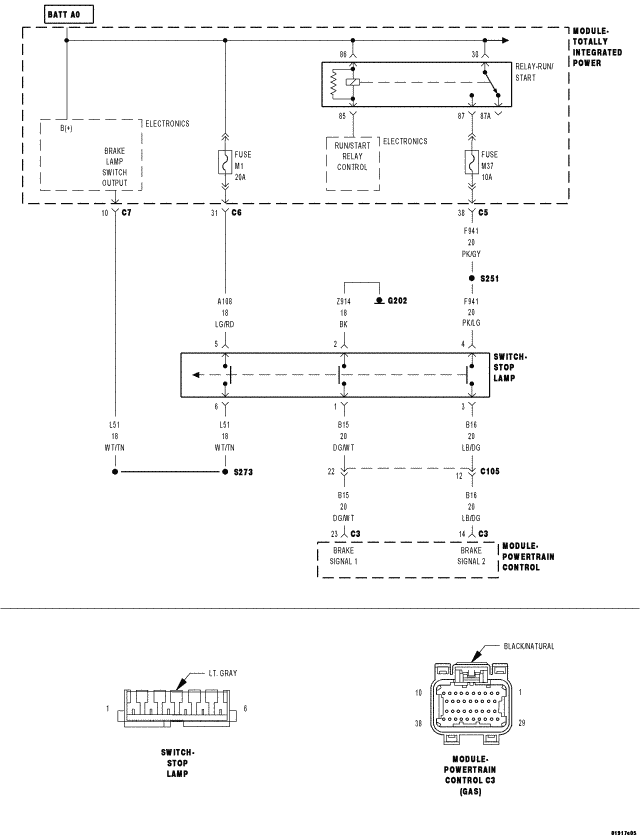

Fig 1: Brake Switch Circuit Schematic
Courtesy of CHRYSLER LLC
