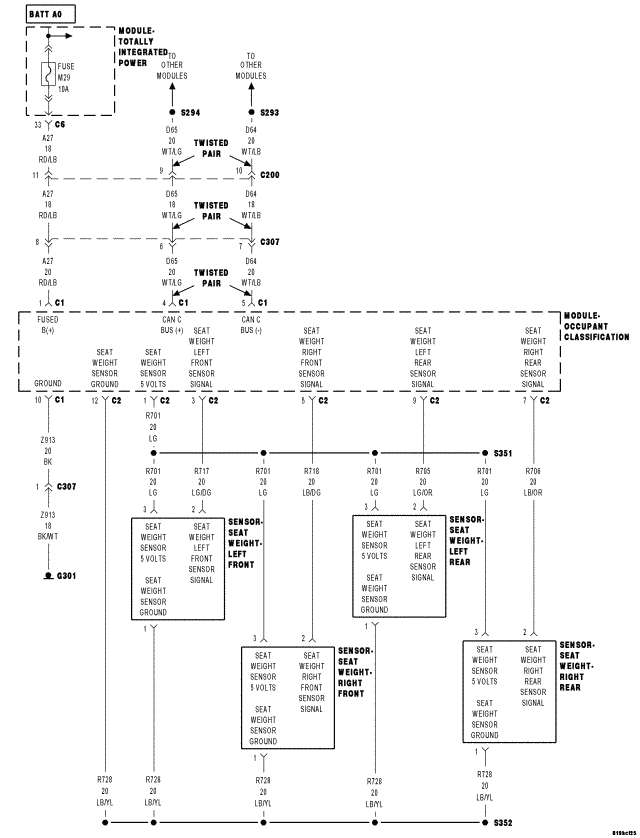

Home › Jeep › 2007 › Wrangler X, Automatic › Repair and Diagnosis › Restraints › Restraints Control Systems › DTCS B1B7D To B1C27 › B1BAA-Occupant Classification Module Configuration Mismatch › Circuit Schematic
