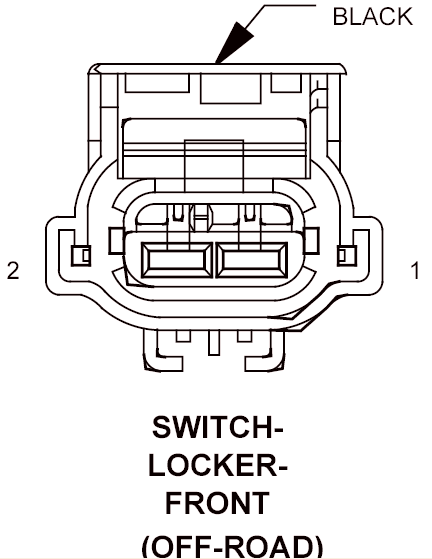

Front Locker Switch (Off-Road) Connector End View

SWITCH-LOCKER-FRONT - BLACK 2-WAY (OFF-ROAD)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	T522 18YL/LB	FRONT LOCKER SWITCH SENSE
2	K91 18DB/YL	SENSOR GROUND
