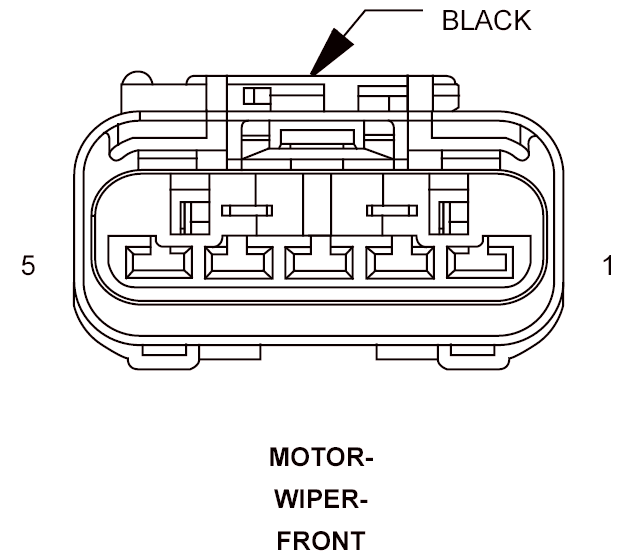

Front Wiper Motor Connector End View
MOTOR-WIPER-FRONT - BLACK 5-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
W3 14BR/LB |
FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT |
| 2 |
W4 14BR/OR |
FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT |
| 3 |
Z905 14BK |
GROUND |
| 4 |
A408 16WT/RD |
FUSED B(+) |
| 5 |
W7 18BR/GY |
FRONT WIPER PARK SWITCH SENSE |
