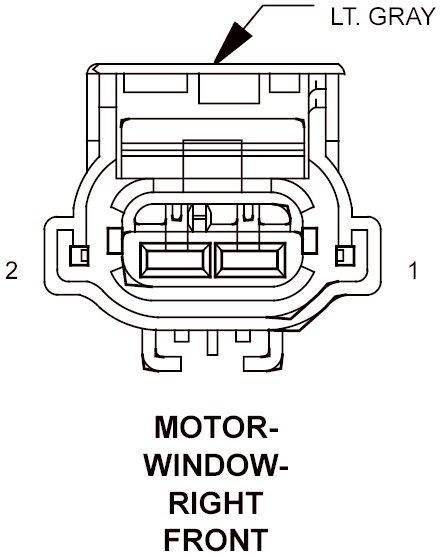

Right Front Window Motor Connector End View

MOTOR-WINDOW-RIGHT FRONT - LT. GRAY 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Q22 14VT/WT	RIGHT FRONT WINDOW DRIVER (DOWN)
2	Q12 14BR/LB	RIGHT FRONT WINDOW DRIVER (UP)
