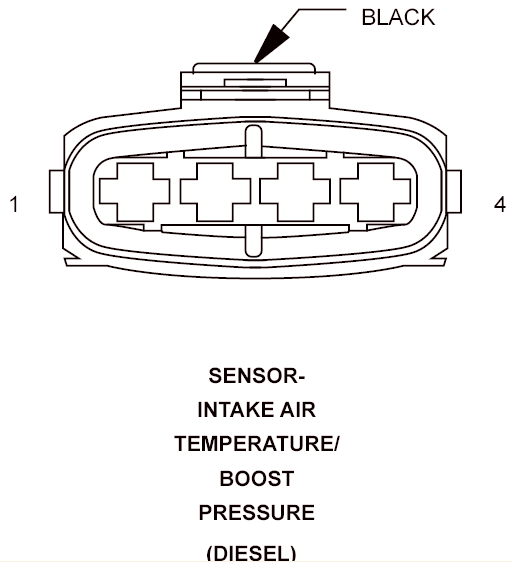

Intake Air Temperature/Boost Pressure Sensor (Diesel) Connector End View
SENSOR-INTAKE AIR TEMPERATURE/BOOST PRESSURE - BLACK 4-WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K656 20GY/BR |
SENSOR GROUND |
| 2 |
K48 20DB/WT |
INTAKE AIR TEMPERATURE SIGNAL |
| 3 |
K356 20BR/GY |
BOOST PRESSURE 5 VOLT SUPPLY |
| 4 |
K37 20BR/OR |
BOOST PRESSURE SIGNAL |
