Tire Pressure Sensor: Removal

Raise and support vehicle. Remove tire and wheel assembly from vehicle.
Let the air out of the tire.
Remove tire from wheel according to manufacturer's instructions being careful not to damage TPM sensor with dismounting tools.
Remove sensor nut.
Remove sensor from wheel. See Fig 3.

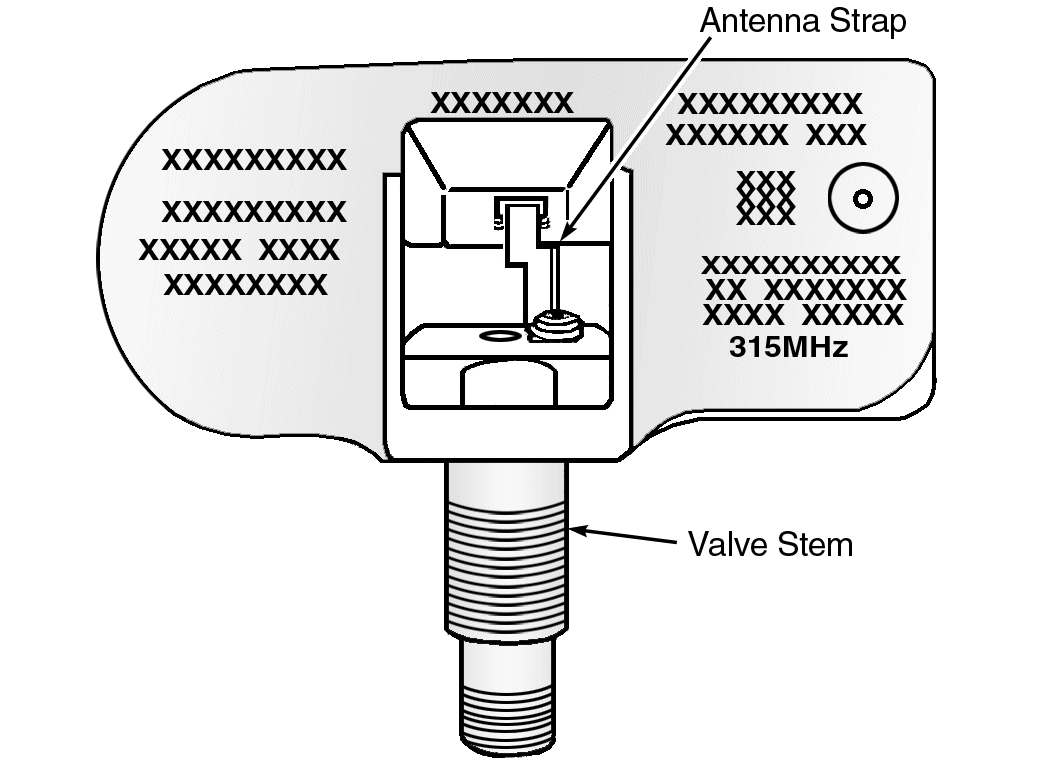

Fig 1: Identifying Tire Pressure Sensor Components (1 Of 2)

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Tire Pressure Sensor Components (2 Of 2)

Courtesy of CHRYSLER CORP.

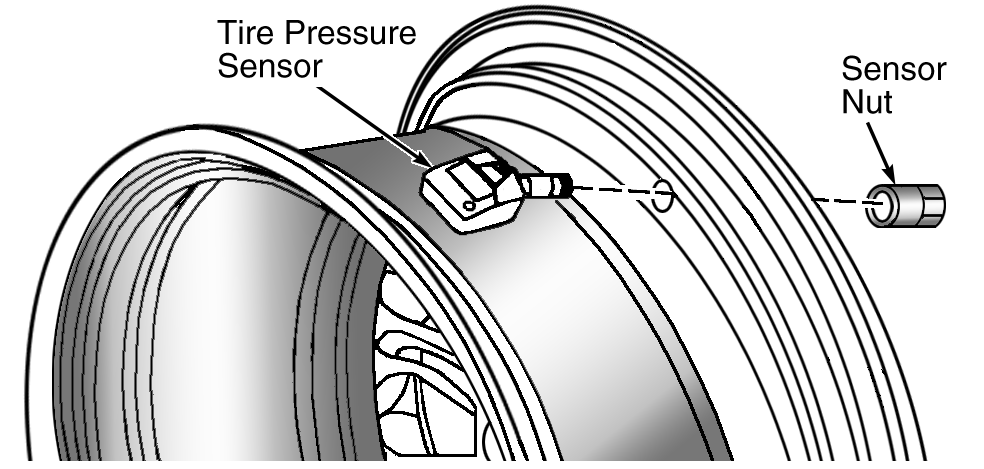

Fig 3: Removing & Installing Tire Pressure Sensor

Courtesy of CHRYSLER CORP.
