Frame & Bumpers: Frame: CROSSMEMBER-Rear/Transmission: Removal: CROSSMEMBER-Rear/Transmission

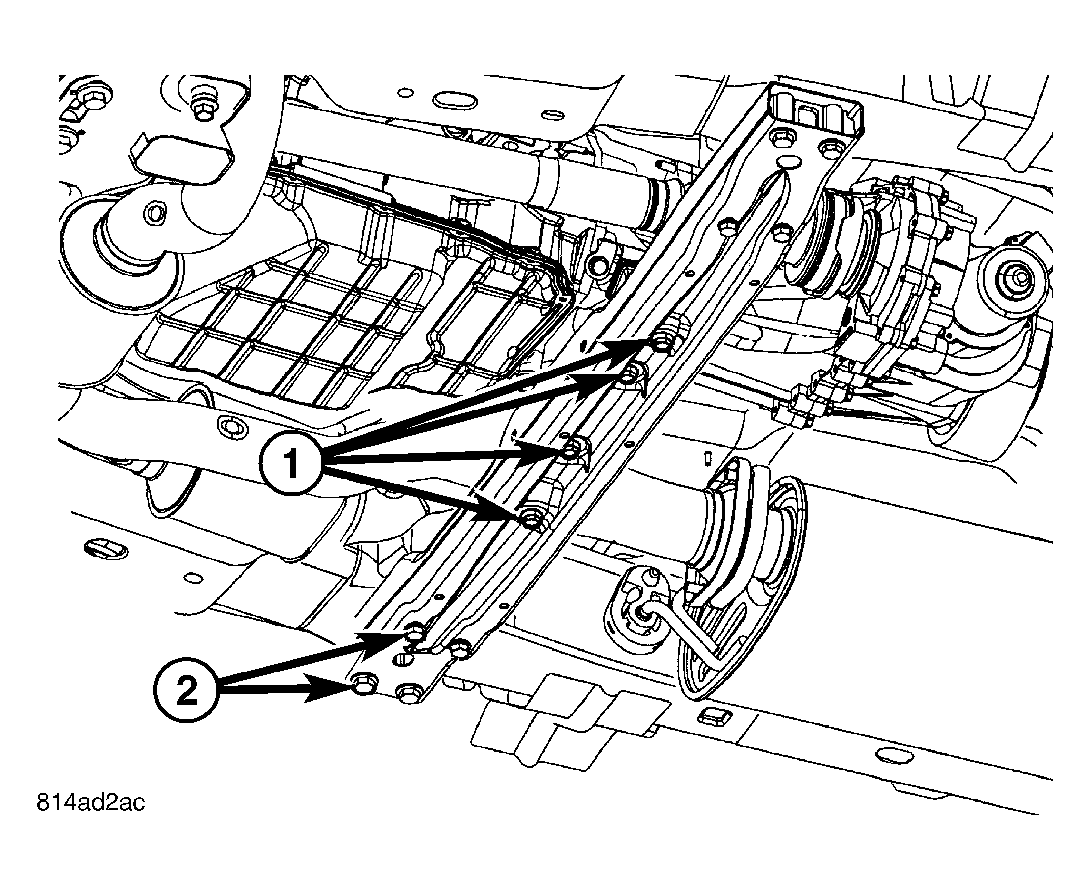

Fig 1: Transfer Case Skid Plate & Transmission Crossmember

Courtesy of CHRYSLER LLC

1. Remove the skid plate. See REMOVAL .
2. Support the transmission with a suitable lifting device.
3. Remove the four transmission mount bolts (1).
4. Remove the eight crossmember bolts (2) and remove the crossmember.
