Circuit Schematic

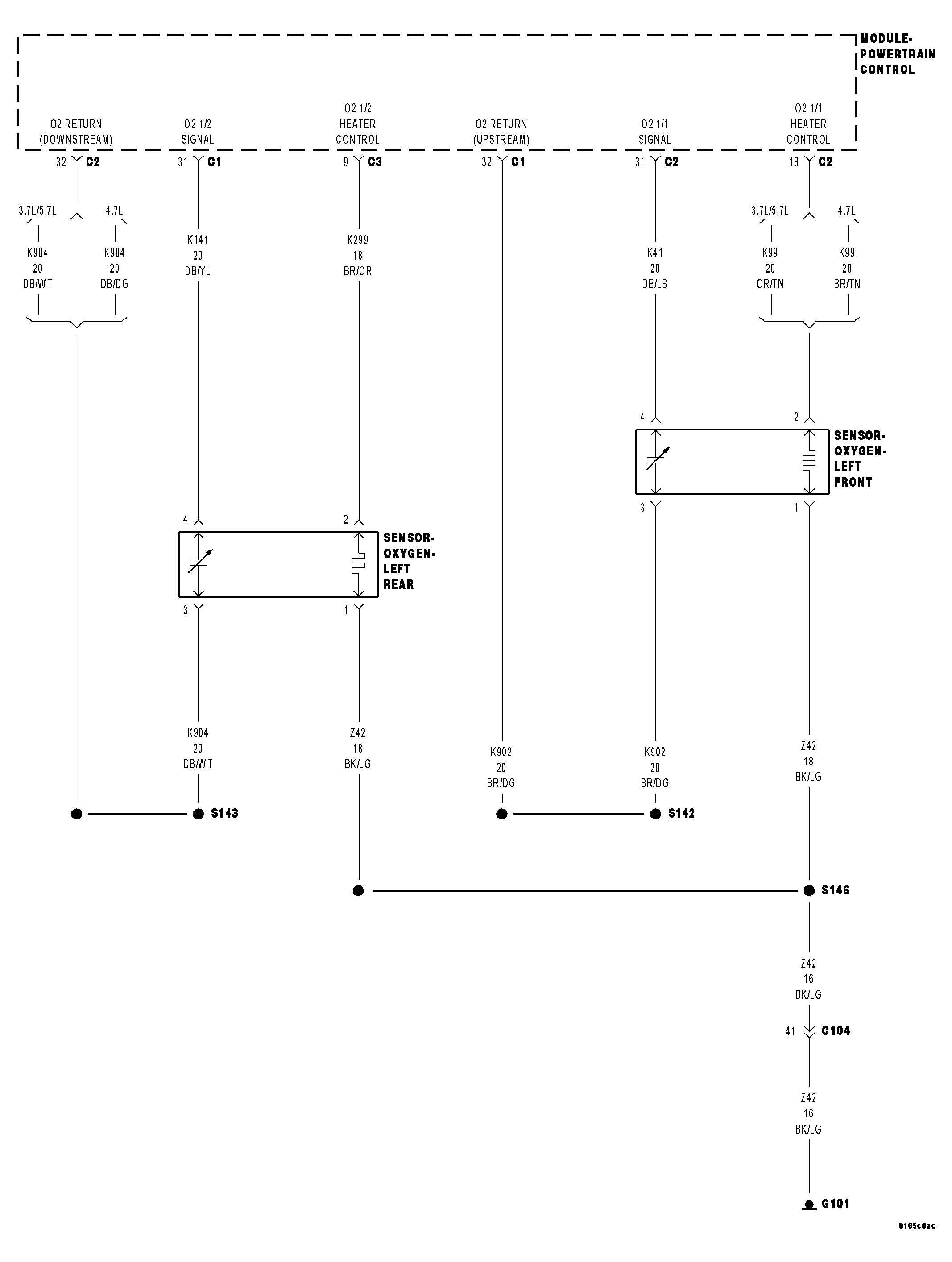

Fig 1: Left Front & Left Rear O2 Sensor Circuit Schematic
GC0044751Courtesy of CHRYSLER LLC
