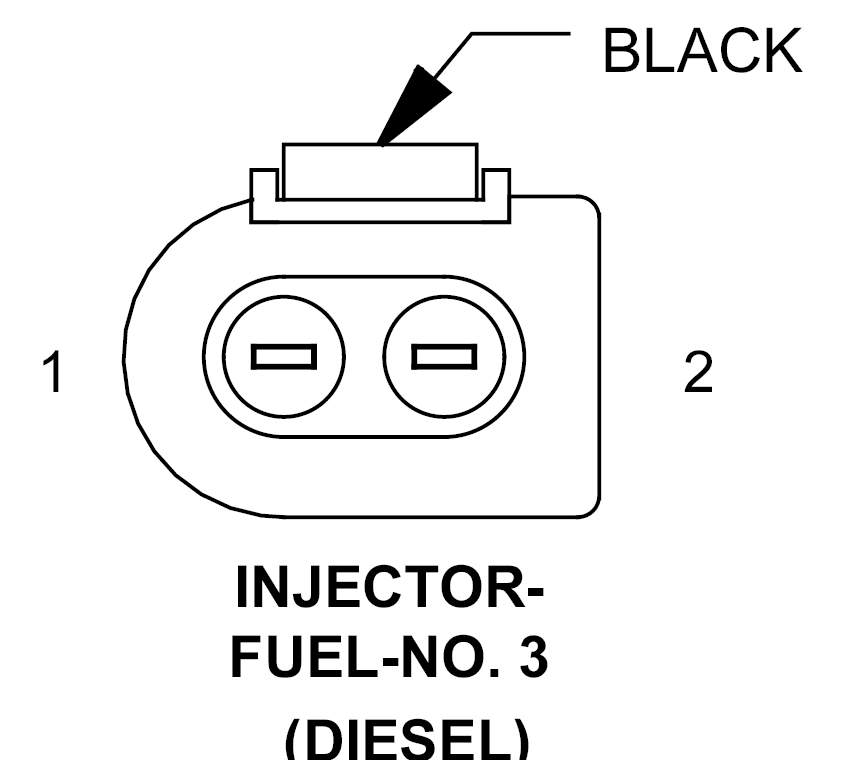

Fuel Injector 3 (Diesel) Connector End View

INJECTOR-FUEL-NO. 3 - 2-WAY(DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K613 16BK/RD	FUEL INJECTOR NO. 3 LOW-SIDE CONTROL
2	K13 16BL/RD	FUEL INJECTOR NO. 3 HIGH-SIDE CONTROL
