Body - Interior & Exterior: Liftgate: Handle: Installation

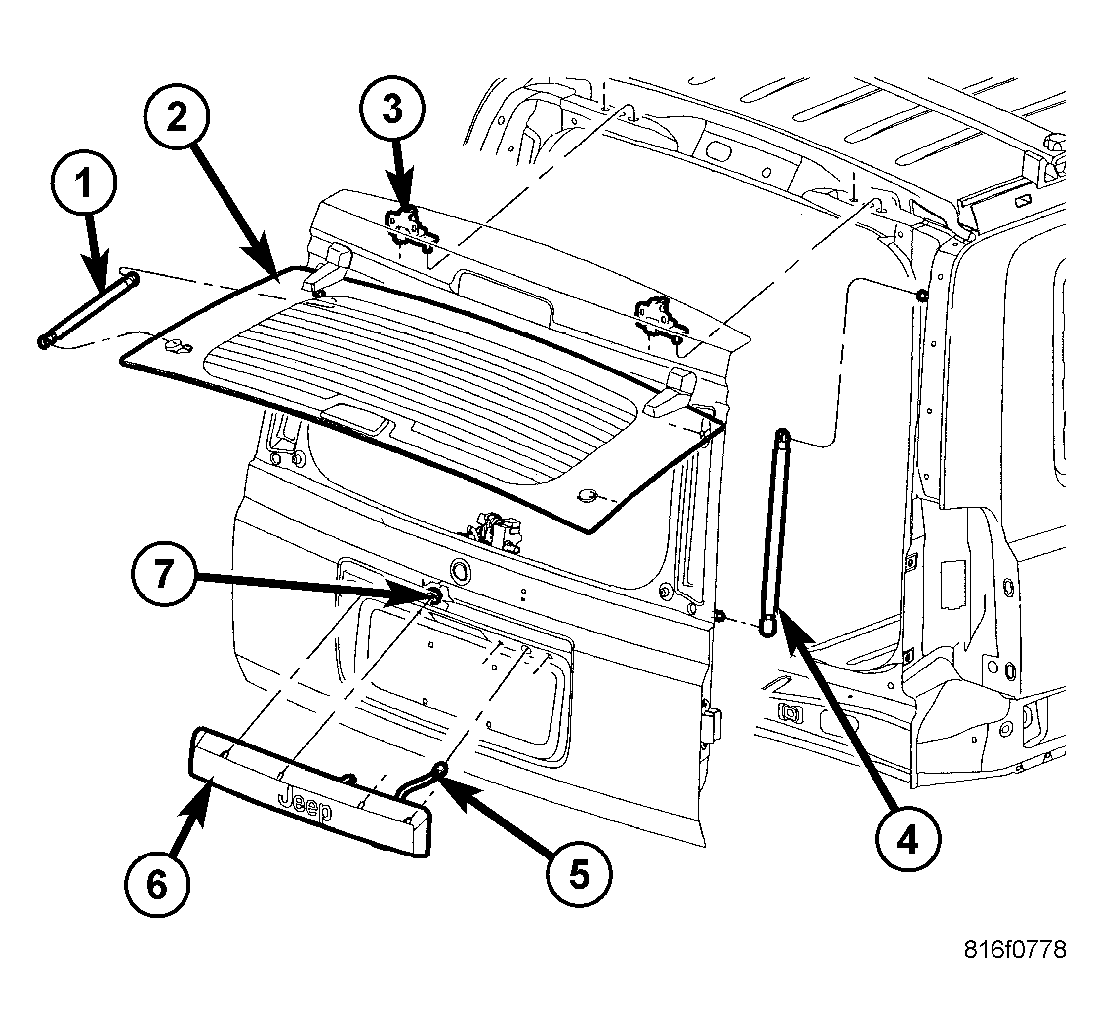

Fig 1: Identifying Liftgate Components

Courtesy of CHRYSLER LLC

1. Position the latch handle (6) onto the outside of the liftgate and seat the wiring grommet.
2. Seat the latch cable clips.
3. Working through the clearance hole in the inside of the liftgate panel, install the liftgate release cable bracket and install the nuts (7).
4. Tighten the nuts to 6 N.m (55 in. lbs.).
5. Connect the latch cable to the handle.
6. Connect the electrical connector of the latch handle on the inside of the liftgate.
   Fig 2: Remove/Install Liftgate Trim Panel

   Courtesy of CHRYSLER LLC
7. Install the watershield.
8. Install the lower trim panel onto the inside of the liftgate. See INSTALLATION .
9. Connect the battery negative cable.
