Body - Interior & Exterior: Liftgate: Latch: Installation

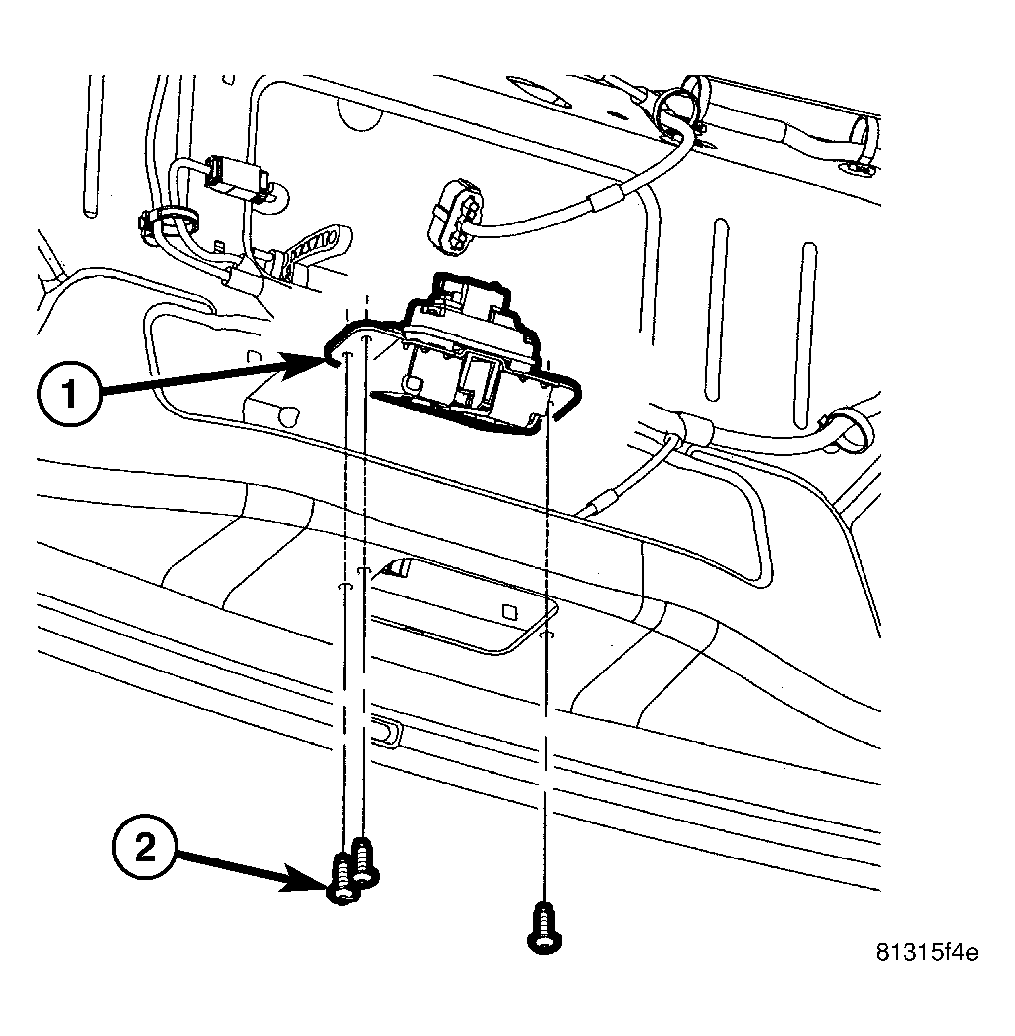

Fig 1: Removing/Installing Latch

Courtesy of CHRYSLER LLC

1. Position the latch (1) onto the inside of the liftgate.
2. Install and tighten the three bolts (2) that secure the latch (1) to the studs on the inside of the liftgate.
3. Tighten the bolts to 12 N.m (9 ft. lbs.).

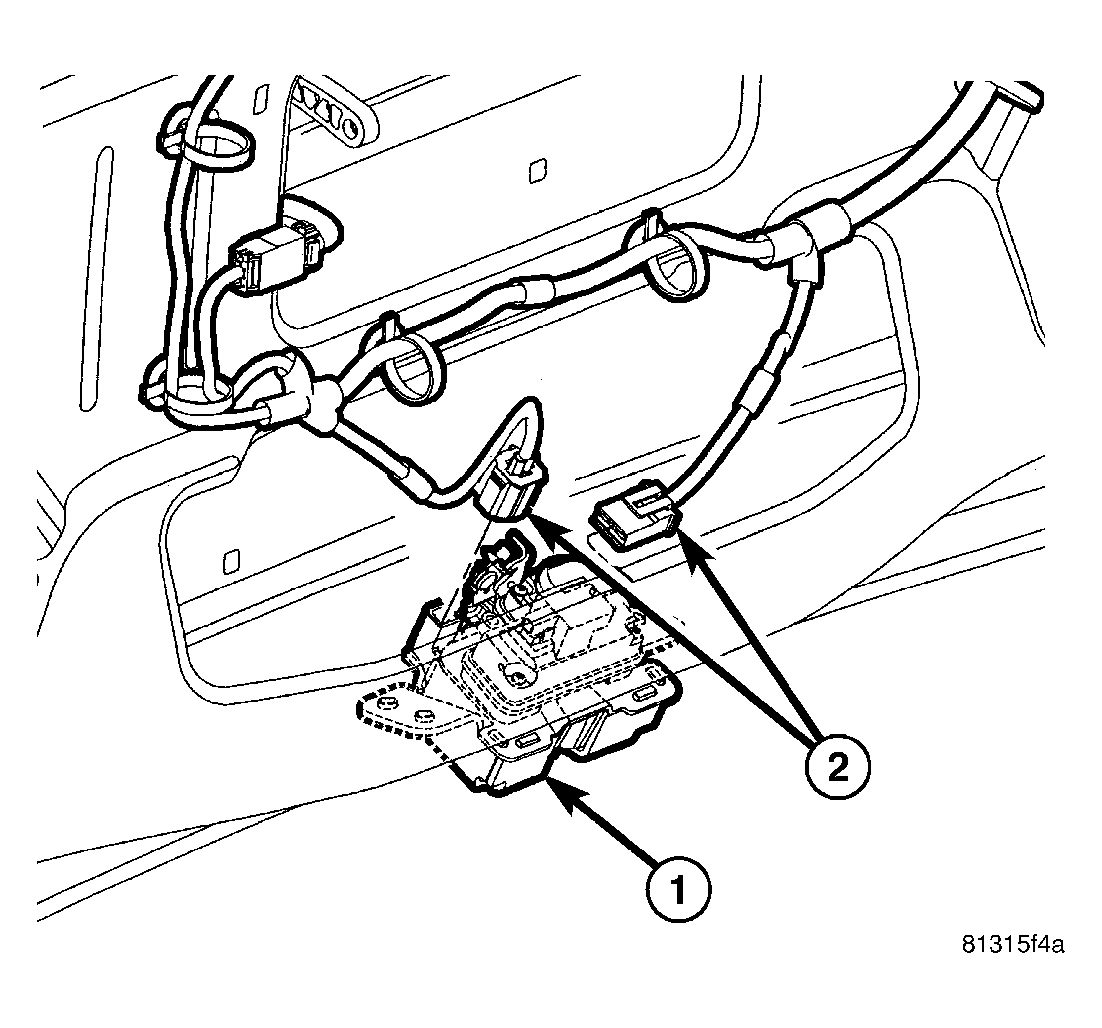

   Fig 2: Disconnecting/Connecting Latch Electrical Connectors

   Courtesy of CHRYSLER LLC
4. Connect the latch release cable to the handle and seat the support clips.
5. Connect electrical connectors (2) to the latch (1).

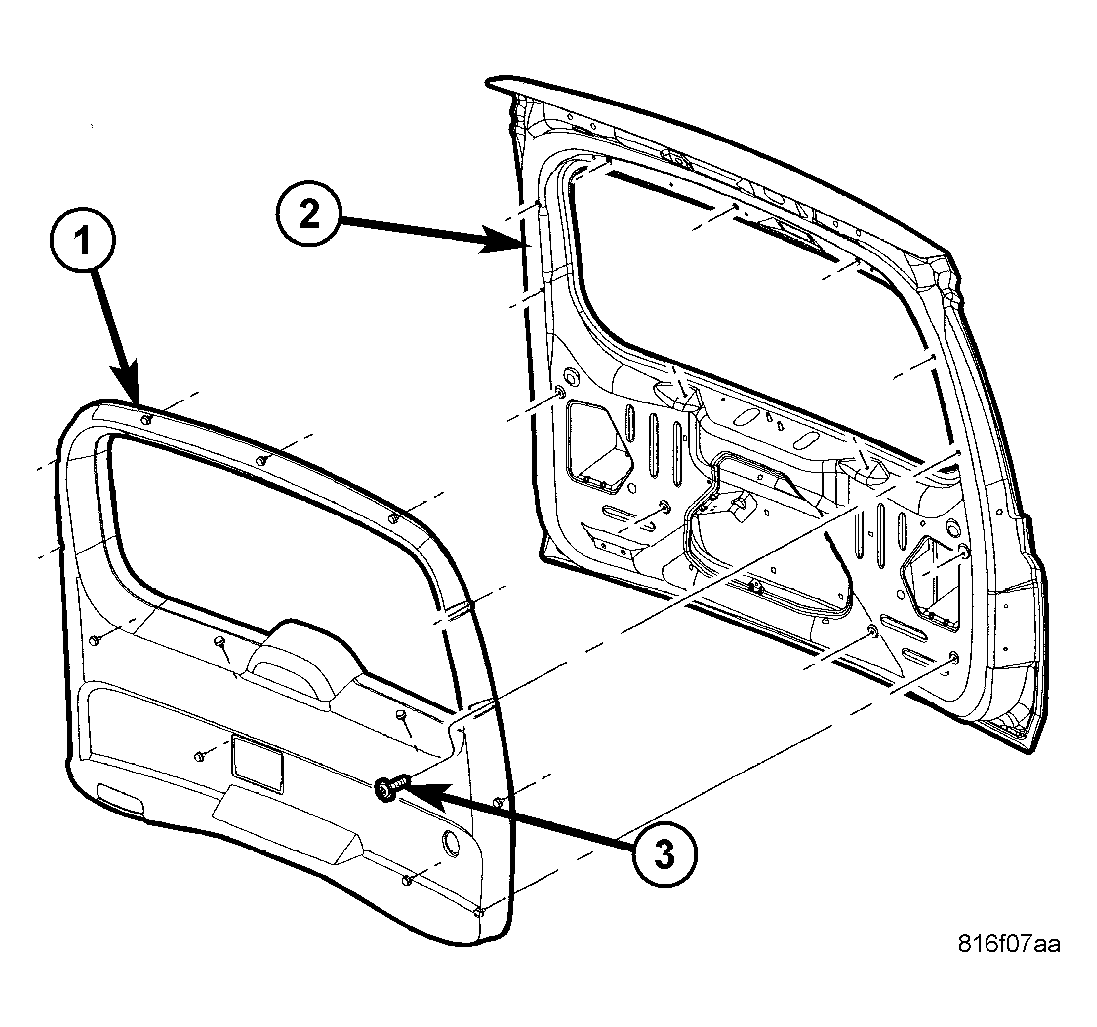

   Fig 3: Remove/Install Liftgate Trim Panel

   Courtesy of CHRYSLER LLC
6. Position the watershield back.
7. Install the trim panel. See INSTALLATION .
8. Connect the battery negative cable.
