Opening Dimensions: Specifications

INDEX

DESCRIPTION	FIGURE
ENGINE COMPARTMENT	Fig 1.
WINDSHIELD OPENING	Fig 2.
FRONT DOOR OPENING	Fig 3.
REAR DOOR OPENING	Fig 4.
QUARTER WINDOW OPENING	Fig 5.
LIFTGATE OPENING	Fig 6.

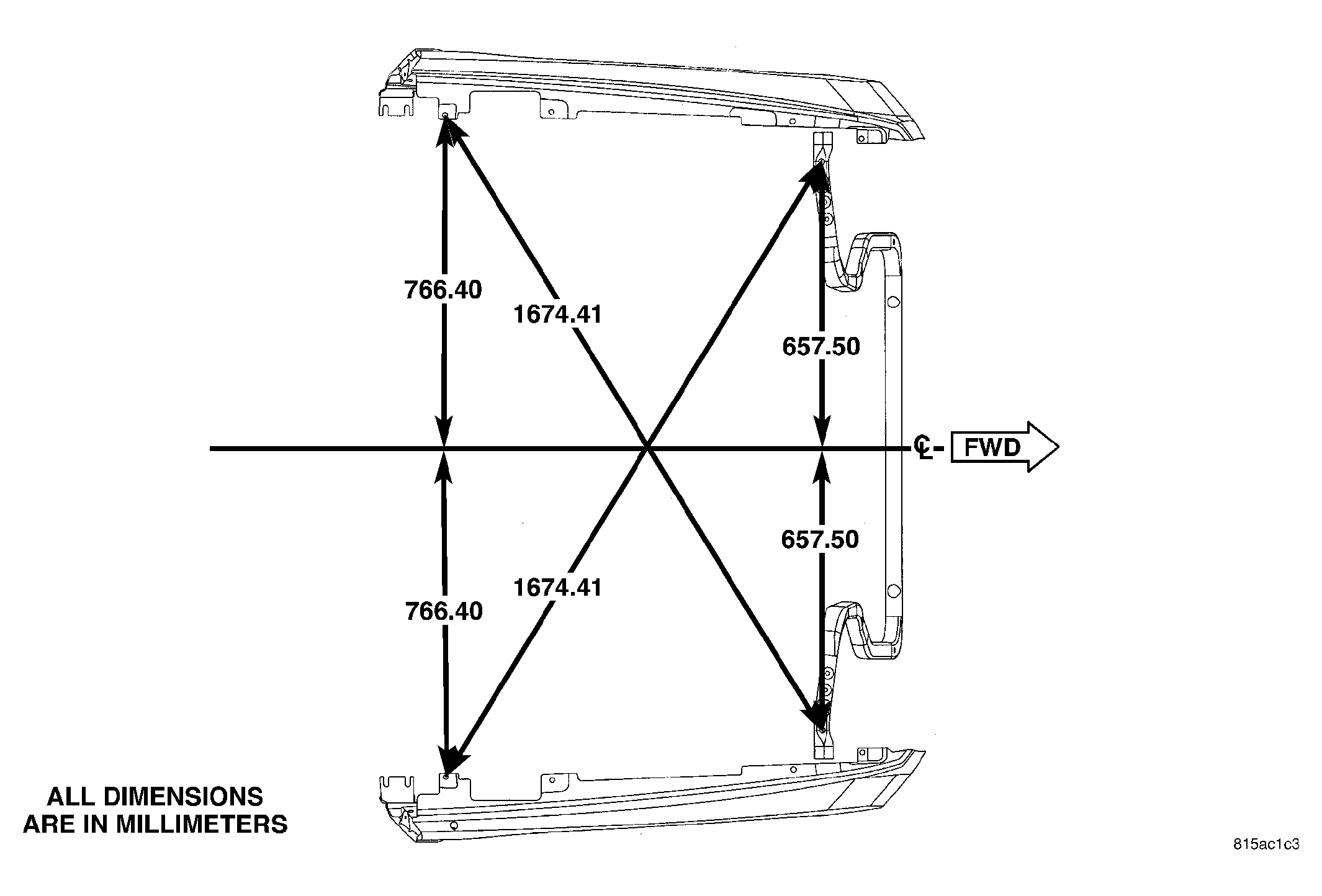

Fig 1: Identifying Engine Compartment Dimensions

Courtesy of CHRYSLER LLC

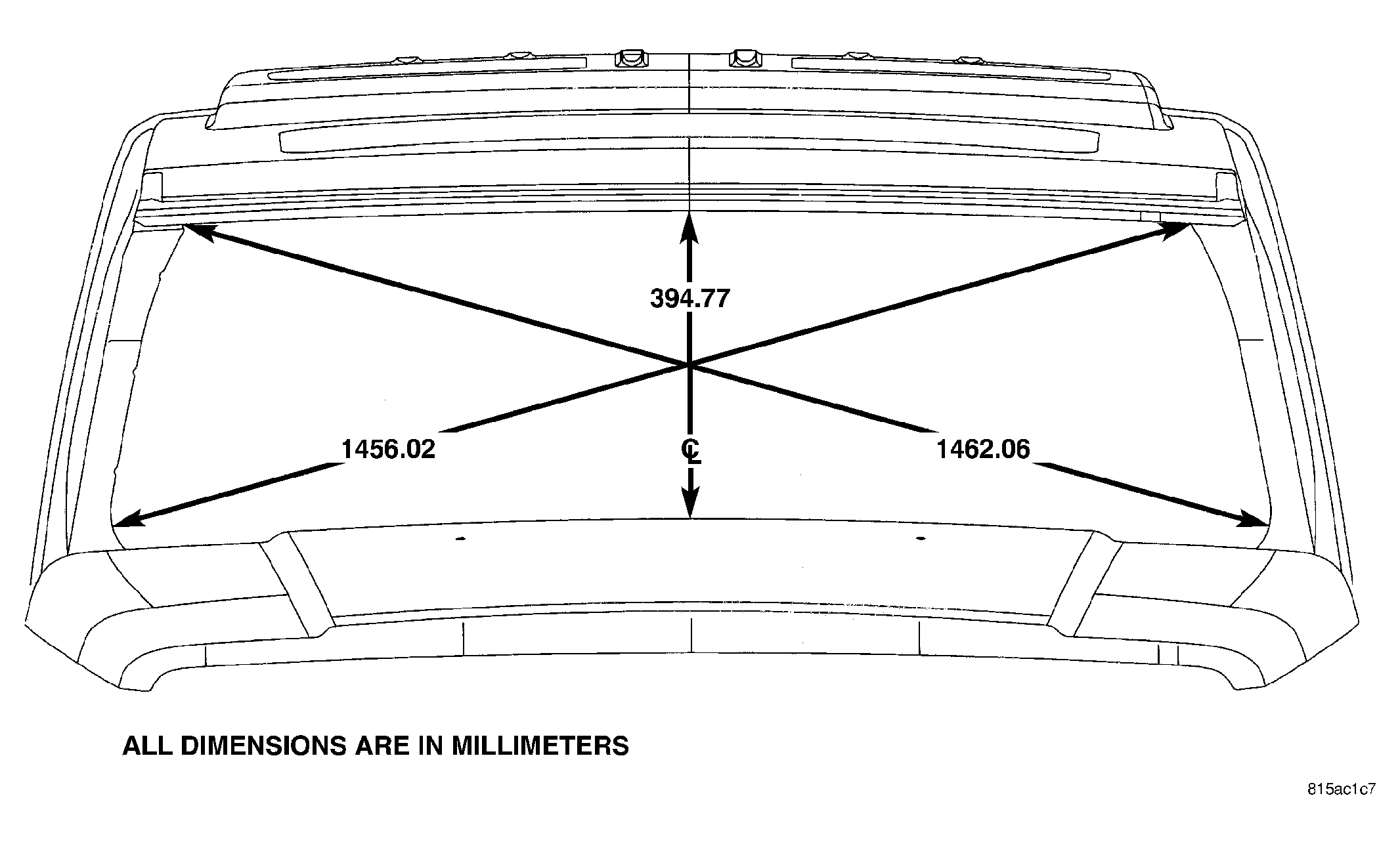

Fig 2: Identifying Windshield Opening Dimensions

Courtesy of CHRYSLER LLC

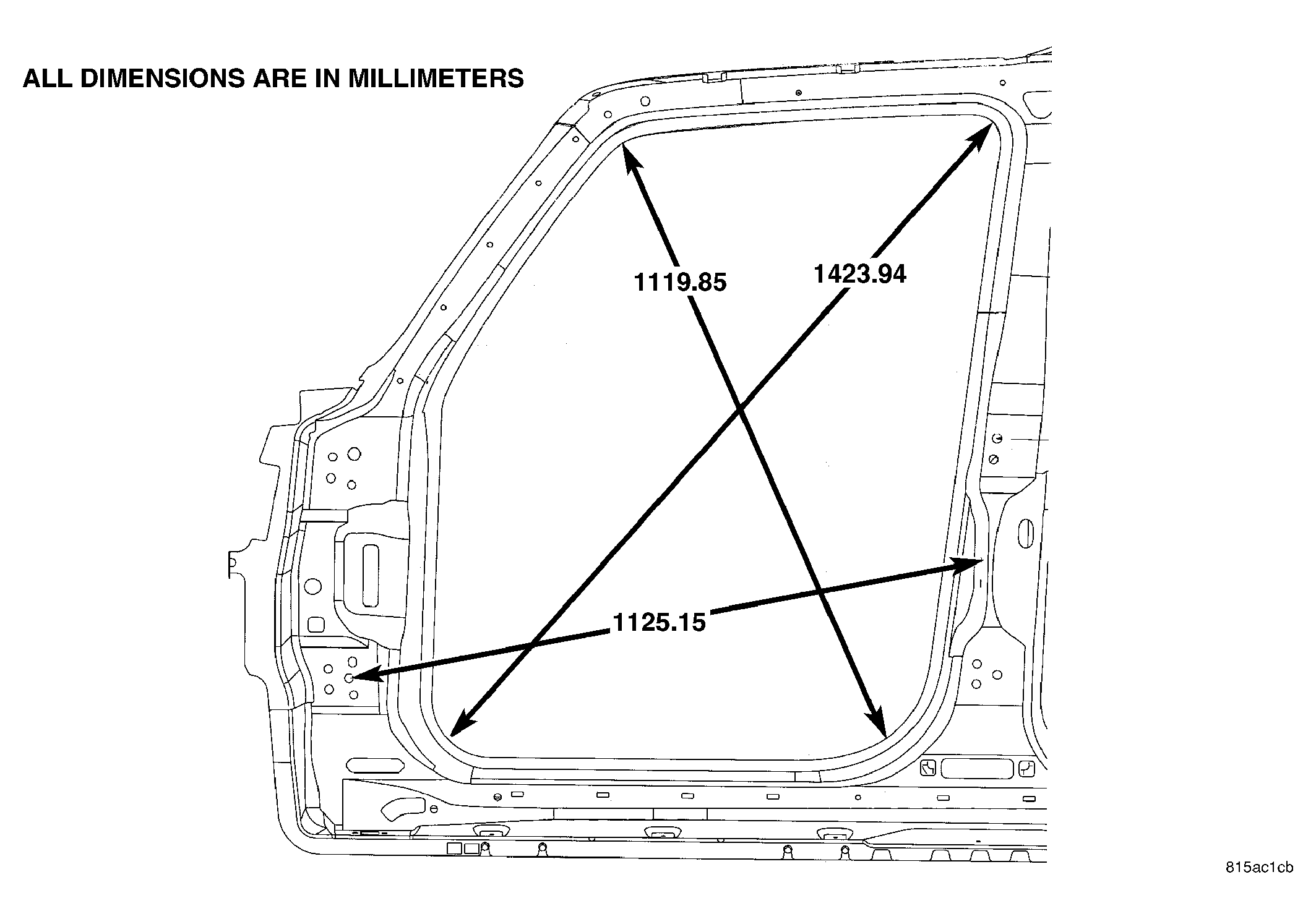

Fig 3: Identifying Front Door Opening Dimensions

Courtesy of CHRYSLER LLC

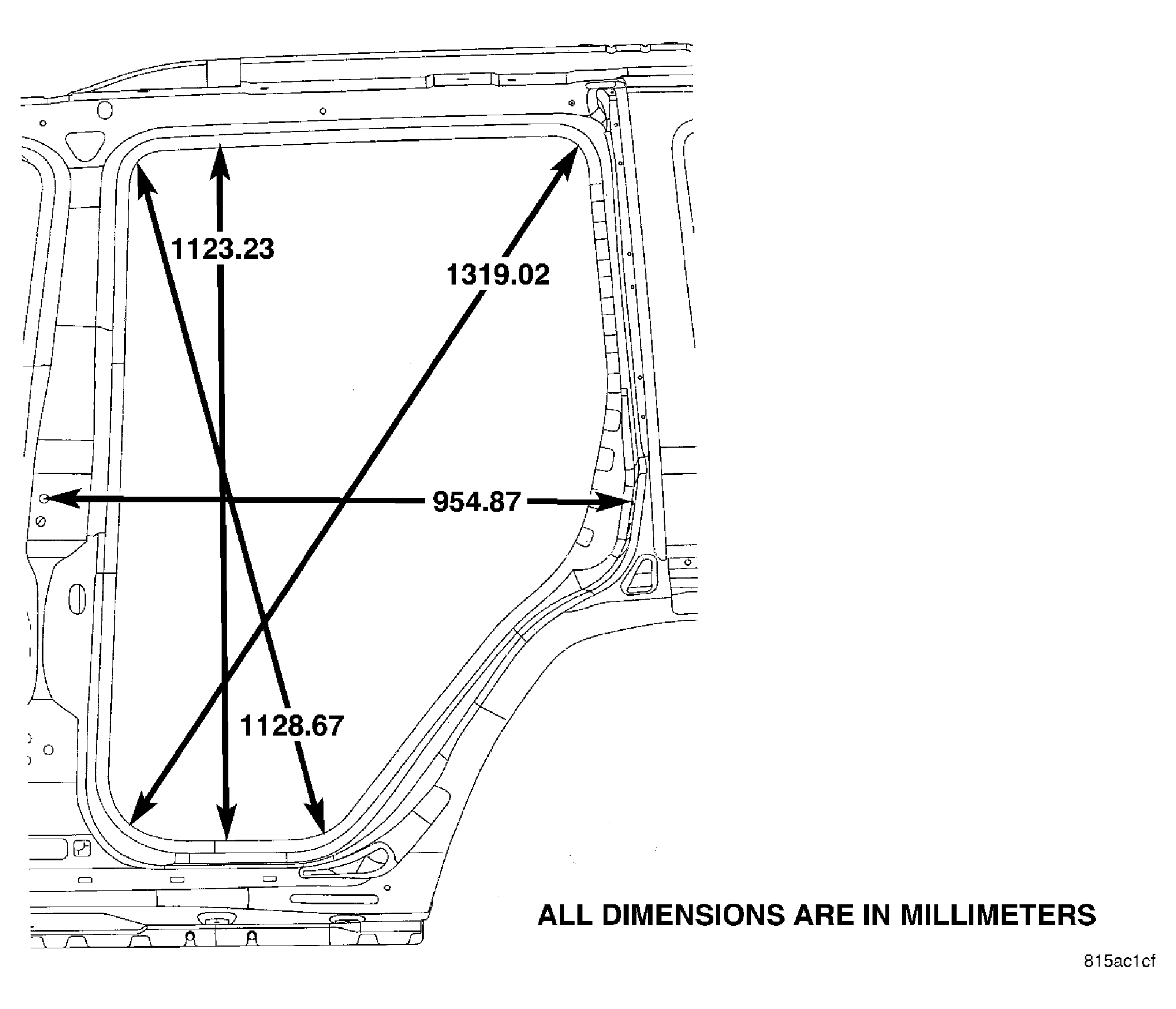

Fig 4: Identifying Rear Door Opening Dimensions

Courtesy of CHRYSLER LLC

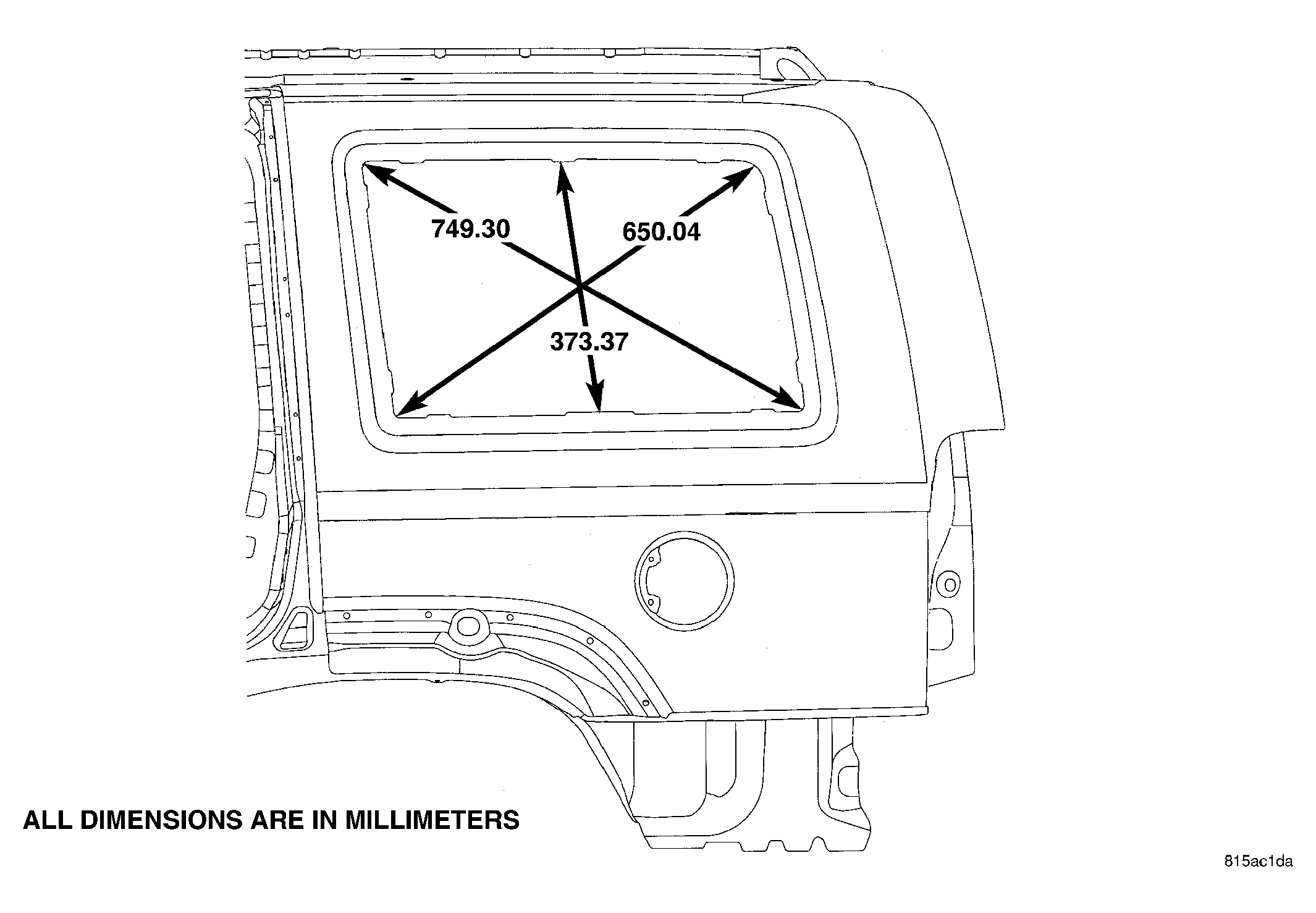

Fig 5: Identifying Quarter Window Opening Dimensions

Courtesy of CHRYSLER LLC

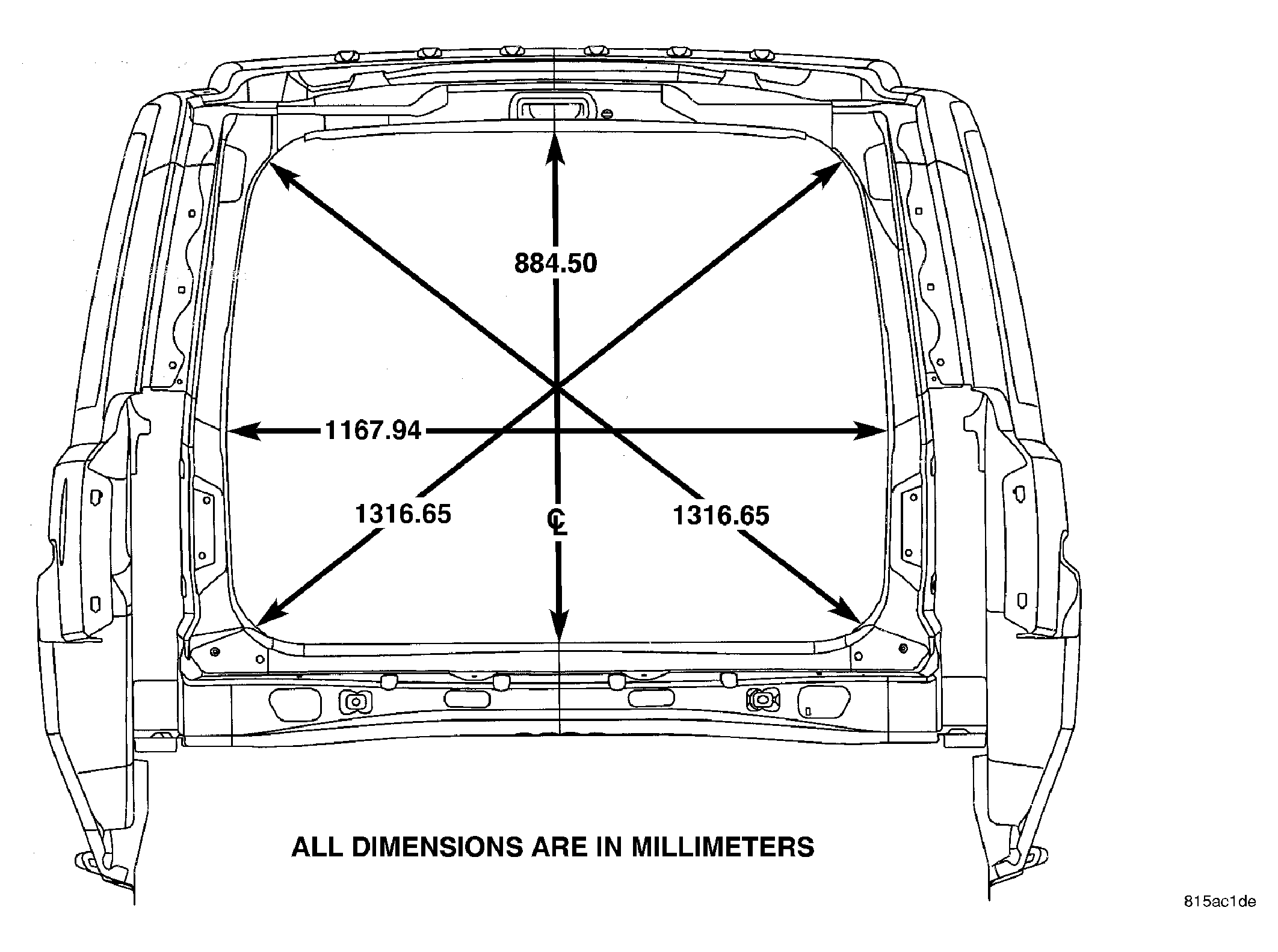

Fig 6: Identifying Liftgate Opening Dimensions

Courtesy of CHRYSLER LLC
