P0196-Engine Oil Temperature Sensor Performance
›
Circuit Schematic
Circuit Schematic

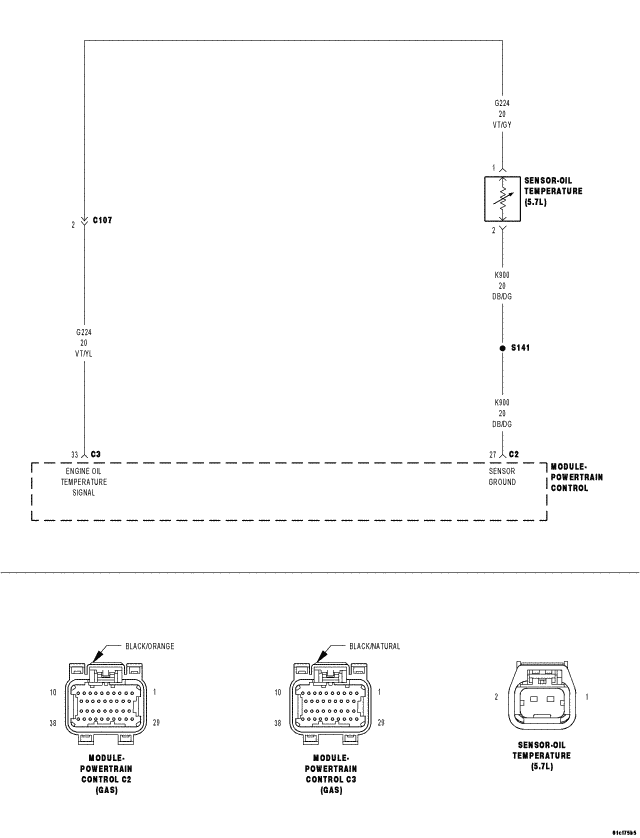

Fig 1: Powertrain Control Module (PCM) Circuit Schematic
Courtesy of CHRYSLER LLC
