Circuit Schematic

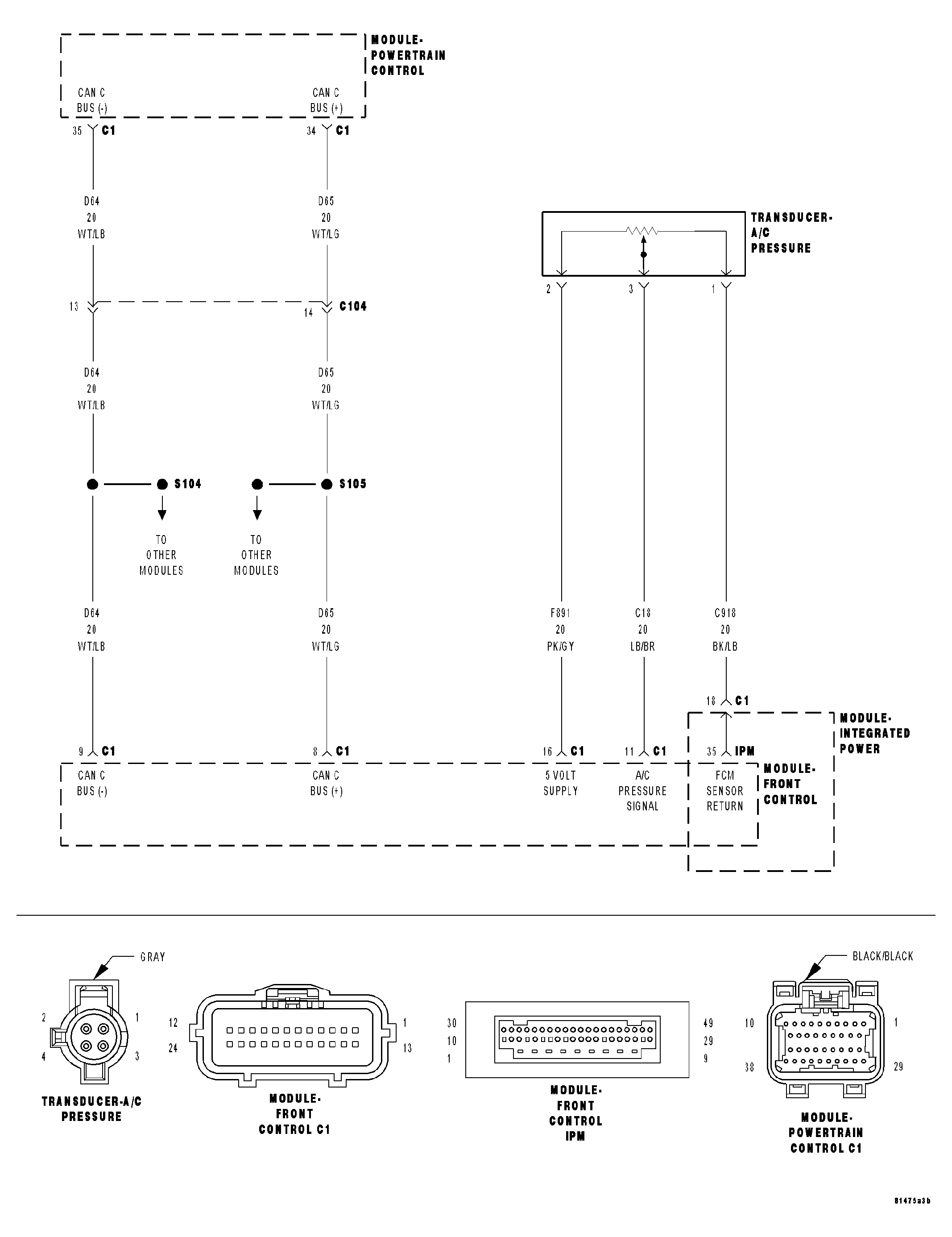

Fig 1: A/C Pressure Transducer Circuit Schematic
GC0027141Courtesy of CHRYSLER LLC
