Circuit Schematic

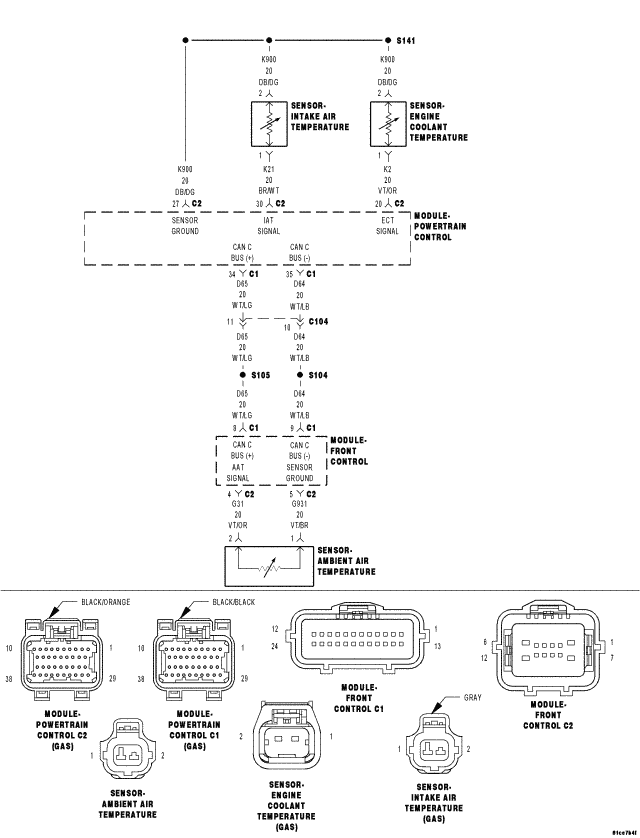

Fig 1: Ambient Air Temperature Sensor Circuit Schematic

GC0071971

Courtesy of CHRYSLER LLC
