PCV Valve

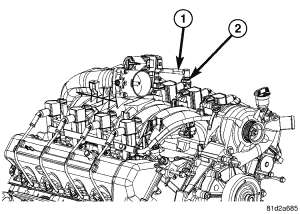

Fig 1: PCV VALVE LOCATION - 4.7L V-8

Courtesy of CHRYSLER LLC

The PCV valve (2) is mounted into the top/rear of the left valve cover.

1. Disconnect plastic line (1) from end of PCV valve.
2. Use a small screwdriver to disengage PCV valve from valve cover.
