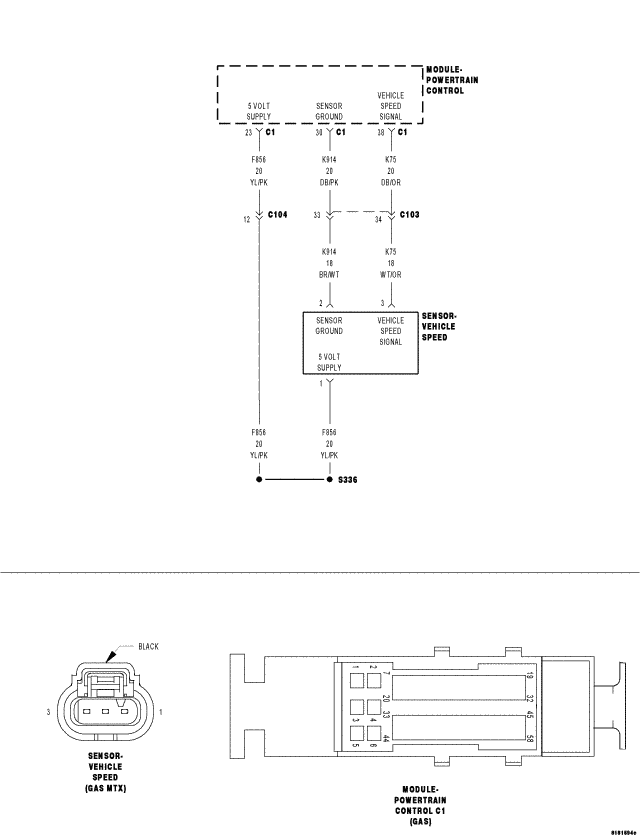

Home › Jeep › 2008 › Compass Limited, AWD, Standard › Repair and Diagnosis › Engine Performance › System › DTCS P1239 To P2008 › P1501-Vehicle Speed Sensor 1/2 Correlation - Drive Wheels › Circuit Schematic
