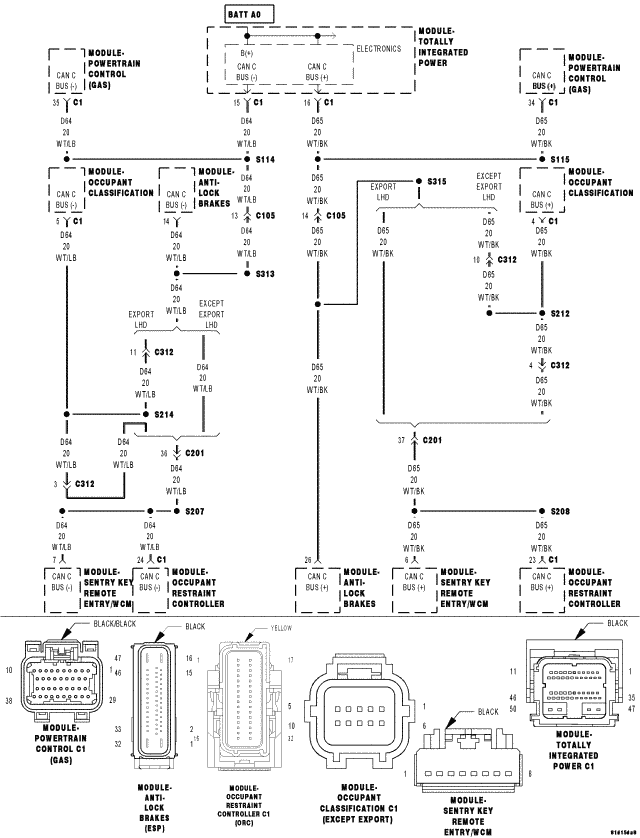

Home › Jeep › 2008 › Liberty Limited, 4WD, Part Time › Repair and Diagnosis › Engine Performance › System › DTCS P2138 To U110E › U0141-Lost Communication With Front Control Module (TIPM) › Circuit Schematic
