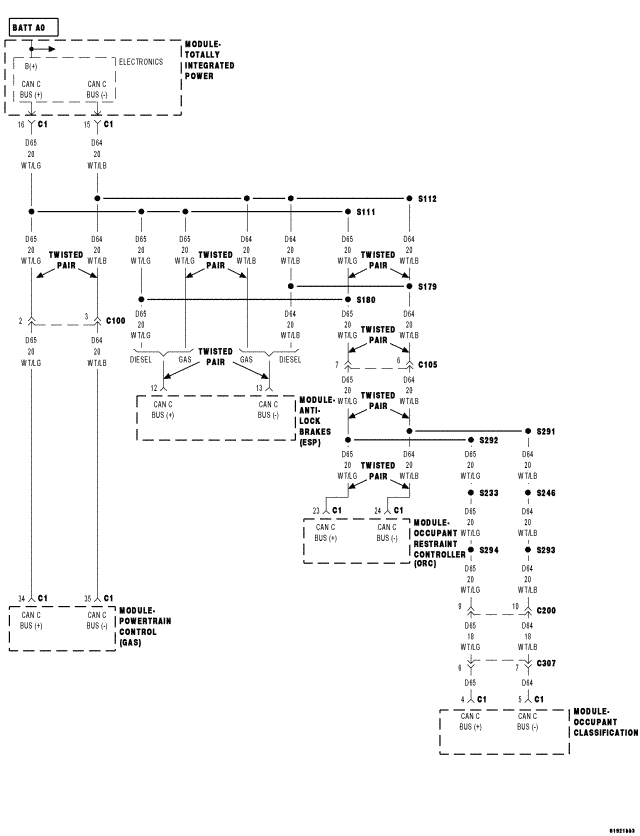

Home › Jeep › 2008 › Wrangler Sahara, Standard › Repair and Diagnosis › Engine Performance › System › DTCS P2161 To U110F › U0141-Lost Communication With Front Control Module (TIPM) › Circuit Schematic
