P0207-Fuel Injector 7 Circuit: Notes

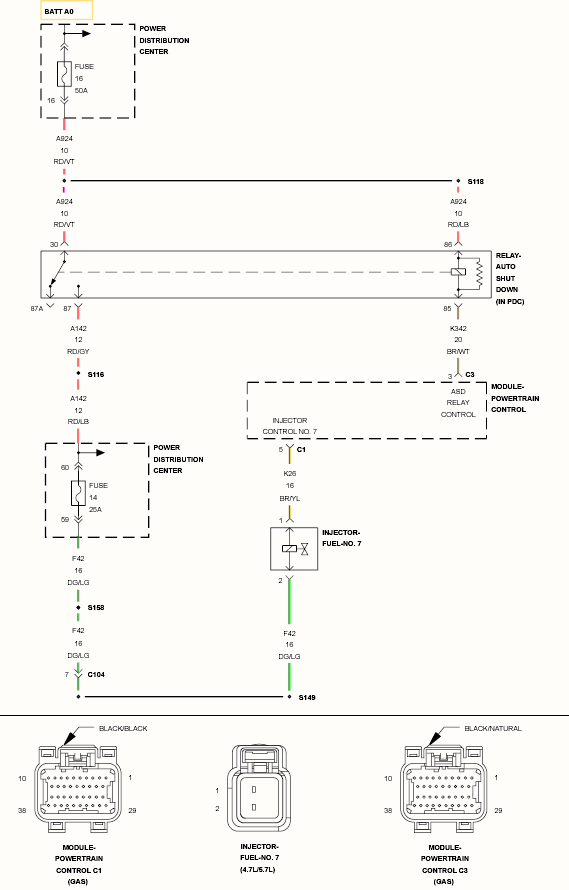

Fig 1: Fuel Injector Circuit

GC0132716

Courtesy of CHRYSLER LLC
