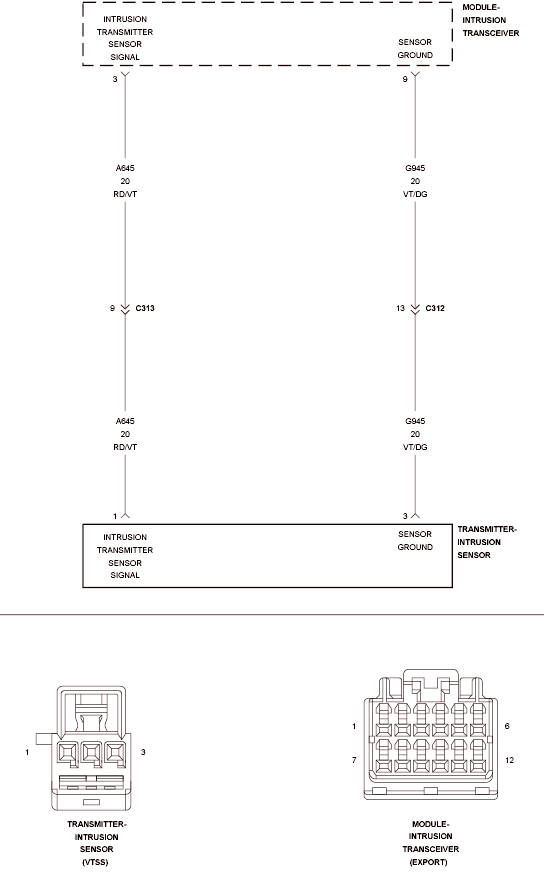

Home › Jeep › 2009 › Commander Overland, 4WD › Repair and Diagnosis › Body & Frame › Door Locks › Intrusion Transceiver Module (ITM) - Electrical Diagnostics › DTC Troubleshooting › B1A41-Security Transmitter Sensor Circuit Open › Circuit Schematic
