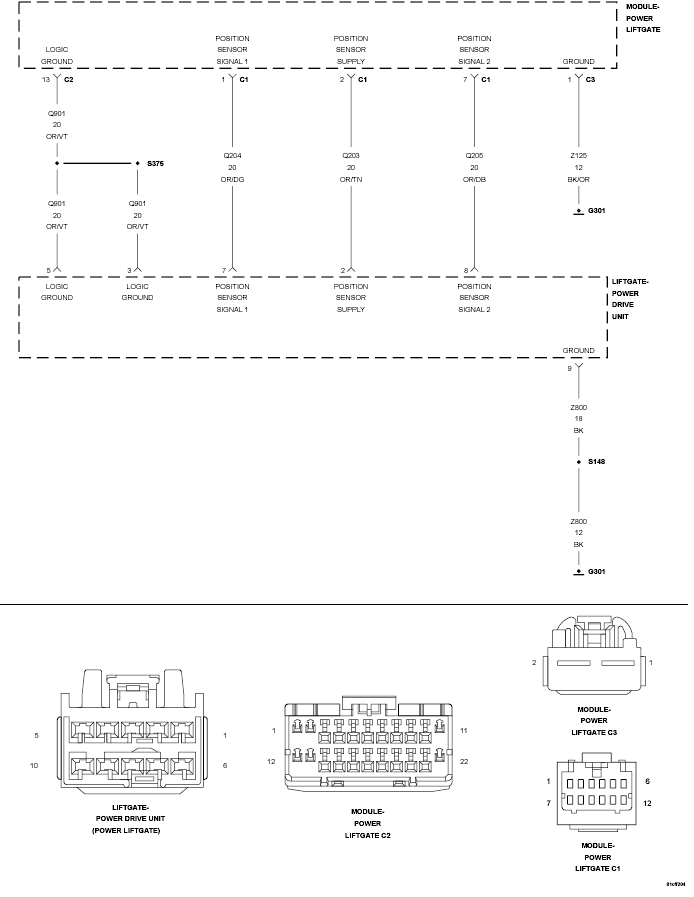

Home › Jeep › 2009 › Commander Overland, 4WD › Repair and Diagnosis › Body & Frame › Door Locks › Power Liftgate Module (PLGM) - Electrical Diagnostics › DTC Troubleshooting › B1963-Power Liftgate Strut Performance › Circuit Schematic
