Without APPS (Accelerator Pedal Position Sensor)

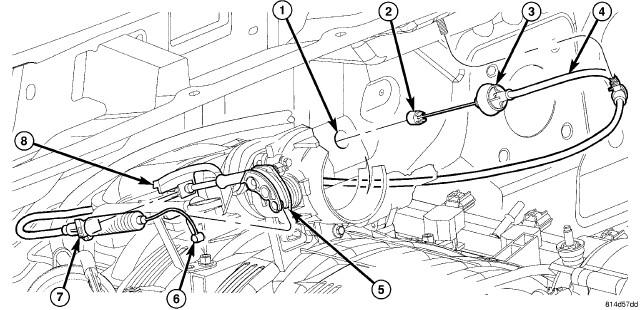

Fig 1: Throttle Control Cable

Courtesy of CHRYSLER LLC

The following procedure applies only to vehicles without the Adjustable Pedal Package (code XAP). It also applies to vehicles not equipped  with an accelerator pedal position sensor.

The accelerator pedal is serviced as a complete assembly including the bracket.

1. From inside the vehicle, hold up accelerator pedal. Remove plastic cable retainer (clip) (2) and throttle cable core wire from upper end of accelerator pedal arm. Plastic cable retainer (clip) (2) snaps into top of pedal arm.

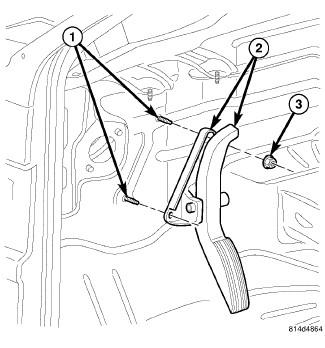

   Fig 2: Accelerator Pedal Assembly W/O APPS

   Courtesy of CHRYSLER LLC
2. Remove two accelerator pedal mounting bracket nuts (3). Remove accelerator pedal assembly (2).
